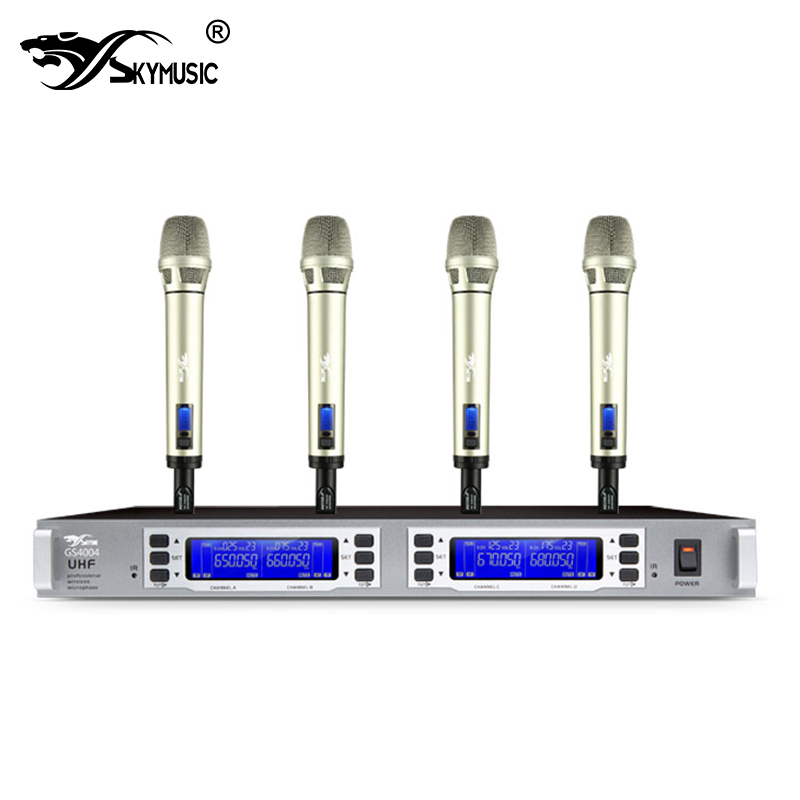

■ Four channel receiving, UHF wireless microphone special band design, free from interference of other industrial frequencies.
■ PLL digital frequency synthesis technology provides up to 200 selected working channels to realize the simultaneous use of multiple machines.
■ Adopt infrared frequency synchronization technology, the transmitter is easy to operate.
■ The power of the transmitter can be adjusted. When it is used outdoors, choose high power and long distance. It is used in classrooms or conference rooms, multi-function halls and other occasions; Select low power when using, which can reduce interference and save battery power.
■ Data pilot control technology is adopted to effectively prevent other RF interference and the impact sound of transmitter on and off.
■ The transmitter is powered by two 1.5v/aa batteries, which has long service time and convenient maintenance.
■ With balanced and unbalanced audio output, it is convenient to connect with various audio equipment.
■ The receiver can display the working parameters of the transmitter for easy monitoring.
■ The transmitter is made of high-strength alloy material, which is durable.
■ Working distance: 100m.
Working frequency: 635-685mhz (automatic frequency control)
Local noise: < 25dB
Gain: 20dB A / D
Dynamic range: greater than 80dB
Working temperature range: - 10 ` + 50... ℃
Transmit power output: high power 10dBm / low power 5dBm
Pickup gain adjustment knob: - 20dB to + 35dB
Modulation mode: FM
Output interface: xlr-4
Frequency response: 40Hz to 12500hz
Directivity: supercardioid
Output impedance: 600r ± 20% (unbalanced output)
Sensitivity (± 3dB) - 36dB 15MV (0dB = 1V / PA, at 1kHz)
Signal to noise ratio 69db SPL (IEC 179, A-weighted, 1kHz, 1pA)
The inherent noise is lower than 20dB SPL (0dB = 2 * 10.5pa)
Wind noise is approximately equal to 45dB SPL (with wind jacket)
Approximately equal to 50dB SPL (without wind jacket)
Maximum modulation system: ± 45khz
Maximum input sound pressure level: 126dB SPL distortion 3%
Dynamic range: more than 102dB
Higher harmonic: more than 60dB lower than the main wave reference
Battery usage: 2 AA batteries - can be used continuously for about 8 hours
