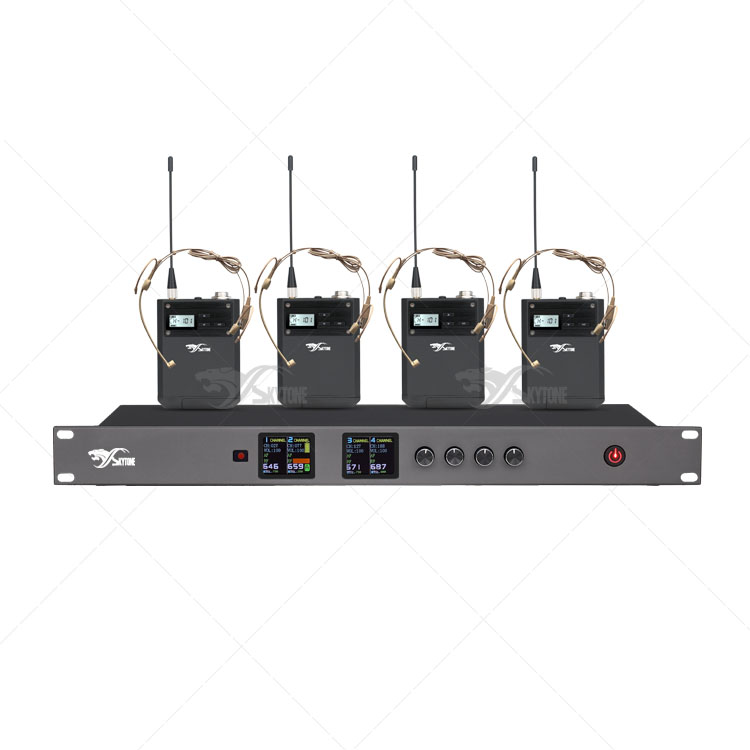

CP4004BH wireless headset microphone
Handheld/headset/lavalier option
Product features
1. Exquisite and elegant structural design, ergonomic and modern
2. UHF band is adopted and two / four channels are available, which has less interference and more reliable transmission than traditional VHF band
3. The built-in frequency automatic scanning function of the wireless receiver can search and lock the non-interference frequency in the working state, and automatically select the most ideal working channel.
4. The front shuttle knob is designed to replace the traditional complex keys and cooperate with the full-color 1.77-inch TFT full-color LCD screen, which is fast and easy to operate
5. Using stable PLL phase-locked frequency oscillation circuit technology, the tuning frequency is adjustable, and the infrared frequency can lock the transmitter frequency quickly and accurately
6. It integrates the overall control of CPU and digital LCD interface display, which is convenient to operate and outstanding in performance.
7. Multiple noise monitoring circuits and special tone locked tone-locked system make it have excellent anti-interference characteristics.
8. Electronic 10 level volume output control is adopted, which makes the operation more clear and intuitive, and is convenient for higher-level adjustment of the engineering system.
9. The wireless receiver adopts electronic 0 to - 60dB sensitivity adjustment control, which makes the operation more clear and intuitive and can be used in various occasions.
10. The wireless receiver can choose the bilingual interface in Chinese and English, which can be used in various occasions.
11. Provide 200 adjustable frequencies for each and a total of 200 channel choices to effectively avoid frequency interruption.
12. Each channel has an independent balanced output port to adapt to different equipment connection requirements.
13. One click infrared frequency matching function can easily and quickly synchronize the frequency of transmitter and receiver.
14. Use the audio circuit to restore the real sound efficiently, with high fidelity, fine sound quality and not easy to scream.
15. The receiving distance (in open space) is about 50m-100m, and the specific distance depends on the actual use environment.
16. Built in effective filtering sponge to effectively filter noise.
17. The receiver adopts multistage audio amplification and has high sensitivity.
18. Combined with wireless amplification system, it can realize full coverage of wireless signals in the use site.
19. Optional 4.3-inch touch microphone, 2.4-inch color screen microphone, handheld microphone, headset microphone and Lavalier microphone.
20. According to the wireless matching scheme, it can be widely used in conferences, speeches, teaching and other occasions.
:
technical parameter
1. Frequency index: 540-590m 640-690m 840-890mhz 32
2. Number of channels: two channels / four channels / eight channels
3. Modulation mode: FM frequency modulation
4. Oscillation mode: PLL phase locked frequency synthesis
5. Sensitivity: when the offset is equal to 25kHz and 6dbv is input, S / N > 60dB
6. Bandwidth: 30 MHz
7. Maximum offset: ± 45khz
8. Comprehensive s / N ratio: > 105dB
9. Comprehensive t.h.d: < 0.7% @ 1kHz
10. Comprehensive frequency response: 45Hz ~ 18khz ± 3dB
11. Power supply: DC 12V ~ 16V 10W
12. Output socket: XLR independent balance socket * 2 / * 4 / * 8
13. Working distance: 50m-100m, depending on the actual use environment
14. Working frequency: 540-590m 640-690m 840-890mhz (infrared automatic frequency matching)
15. Local noise: < 25dB
16. Gain: 20dB
17. A / D dynamic range: greater than 80dB
18. Operating temperature range: - 10 ℃ + 50 ℃
19. Volume gain: Ten level electronic knob
20. Sensitivity: - 45dB
21. Output interface: xlr-4
22. Frequency response: 40Hz to 12500hz
23. Output impedance: 600r ± 20% (unbalanced output) (0dB = 1V / PA, at 1kHz)
24. Signal to noise ratio: 69db SPL (IEC 179, A-weighted, 1kHz, 1pA)
25. Inherent noise: lower than 20dB SPL (0dB = 2 * 10.5pa), the wind noise is about 45dB SPL (with windproof jacket) and about 50dB SPL (without windproof jacket)
26. Maximum regulation: ± 45khz
27. Maximum input sound pressure level: 126dB SPL distortion 3%
Dynamic range: more than 10228 DB
29. High order harmonic: more than 60dB lower than the main wave reference
[wireless Bodypack transmitter]
major function
1. Uhf600-699mhz band design is adopted, which is perfectly connected with the receiver;
2. It adopts 4-pin Mini XLR socket and is equipped with skin color condenser heart-shaped directional headset micro microphone;
3. LCD display screen is provided to display the current frequency point, electric quantity, mute / non mute, channel, etc;
4. Use one AA Battery installation, effective working time is about 5 hours (difference according to different batteries).
[headset microphone]
1. Cartridge size: 6mm
2. Directivity: single direction
3. Sensitivity: - 32dB ± 2dB
4. Frequency response: 70 ~ 20000hz
5. Output impedance: ≤ 2.2k Ω
6. Working voltage: 2.0v-10v DC
7. SNR: ≥ 92dB
8. Total length of line: 1.2m
