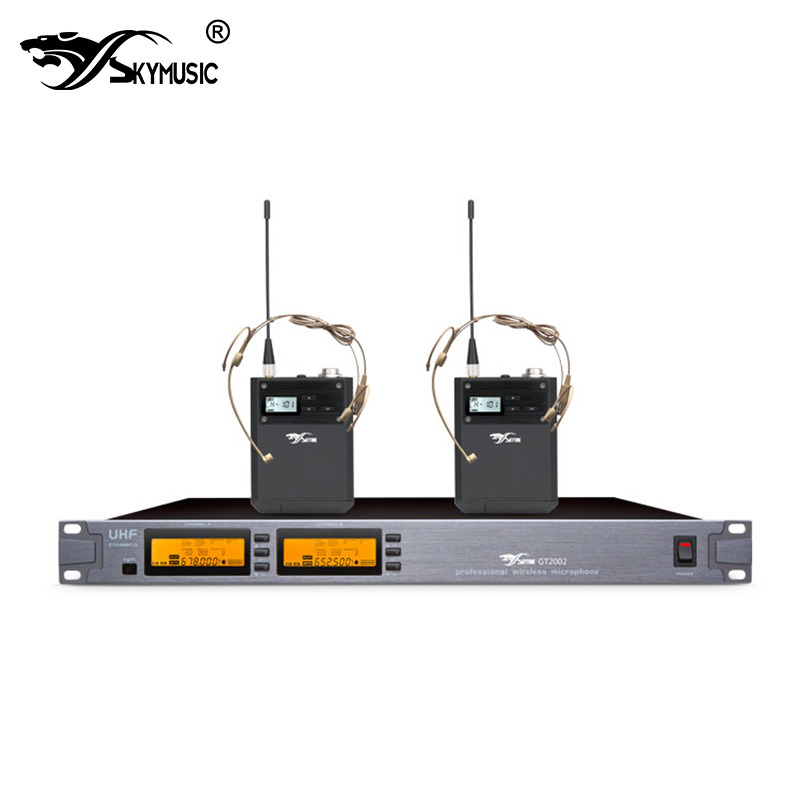

■ Adopt stable PLL phase locking frequency oscillation circuit technology, adjustable tuning frequency, and the infrared frequency matching can quickly and accurately lock the transmitter frequency, 50 sets can be used at the same time.
■ Integrated with the general control of CPU and digital LCD interface display, the operation is convenient and the performance is outstanding.
■ Multiple noise monitoring circuits and special tone locked tone-locked system make it have excellent anti-interference characteristics.
■ Electronic volume output control is adopted to make the operation more clear and intuitive.
■ Carrier frequency band: UHF 640 ~ 690mhz
■ Number of channels: two channels
■ Modulation mode: FM
■ Oscillation mode: PLL phase locking frequency synthesis
■ Sensitivity: when the offset is equal to 25kHz and 6dbv is input, S / N > 60dB
■ Bandwidth: 30 MHz
■ Maximum offset: ± 45khz
■ Comprehensive s / N ratio: > 105dB
■ Comprehensive t.h.d: < 0.7% @ 1kHz
■ Comprehensive frequency response: 45Hz ~ 18khz ± 3dB
■ Power supply: DC 12V ~ 16V 10W
■ Output socket: XLR parallel and 6.3 non parallel sockets
■ Working distance: 100M
Bodypack transmitter
■ Carrier frequency band: uhf635 ~ 685mhz
■ Oscillation mode: PLL phase locking frequency synthesis
■ Harmonic radiation: < - 65dbm
■ Maximum offset: ± 45khz
■ Frequency response: 45Hz ~ 18khz ± 3dB
■ Bandwidth: 120 MHz
■ Pickup: capacitive
■ RF power output: 10MW
■ Battery: AA # x # 1
■ Current consumption: < 150mA
■ Input socket: 4-pin Mini XLR socket
■ Continuous working time: > 8 hours
■ Microphone size: φ 6mm
Directivity: single direction
Sensitivity: 20mV / PA (- 32dB ± 2dB)
Frequency response: 50 ~ 20000hz
Output impedance: ≤ 2.2k Ω
Working voltage: 1.5v-10v DC
Signal to noise ratio: ≥ 90dB
