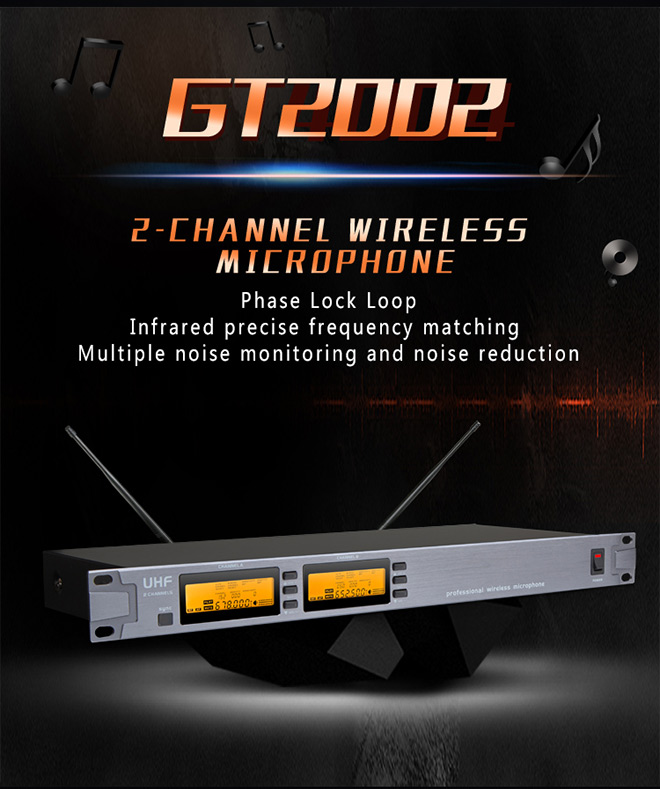

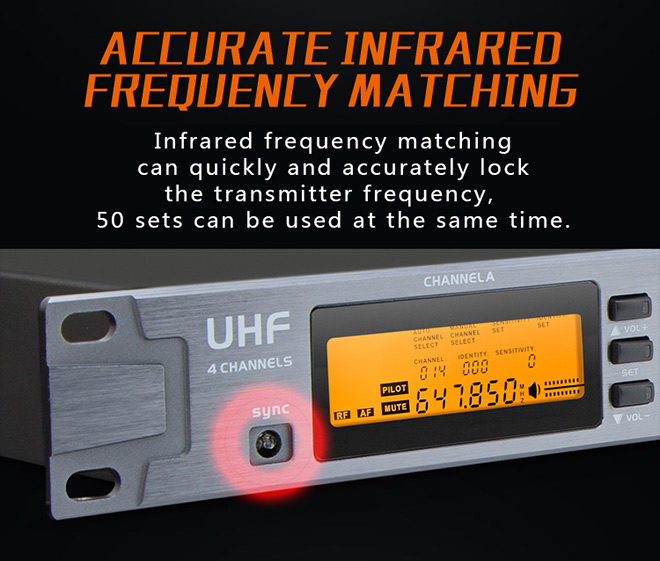

■ Adopt stable PLL phase locking frequency oscillation circuit technology, adjustable tuning frequency, and the infrared frequency matching can quickly and accurately lock the transmitter frequency, 50 sets can be used at the same time.
■ Integrated with the general control of CPU and digital LCD interface display, the operation is convenient and the performance is outstanding.
■ Multiple noise monitoring circuits and special tone locked tone-locked system make it have excellent anti-interference characteristics.

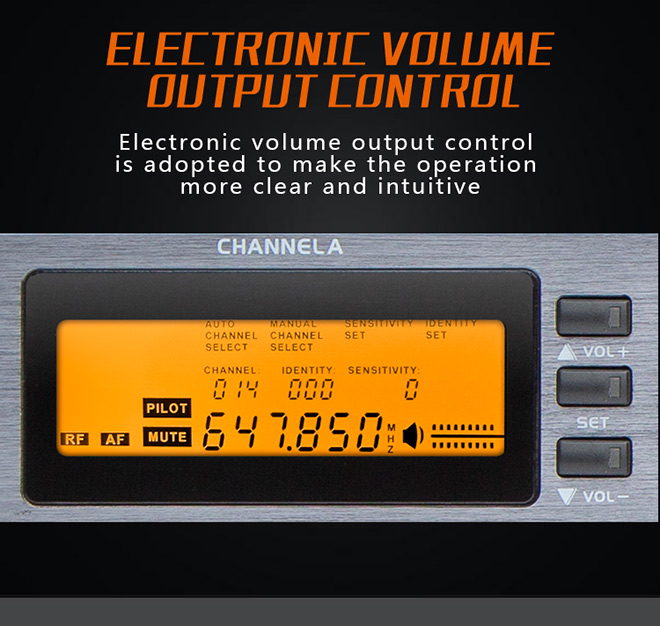

■ Electronic volume output control is adopted to make the operation more clear and intuitive.

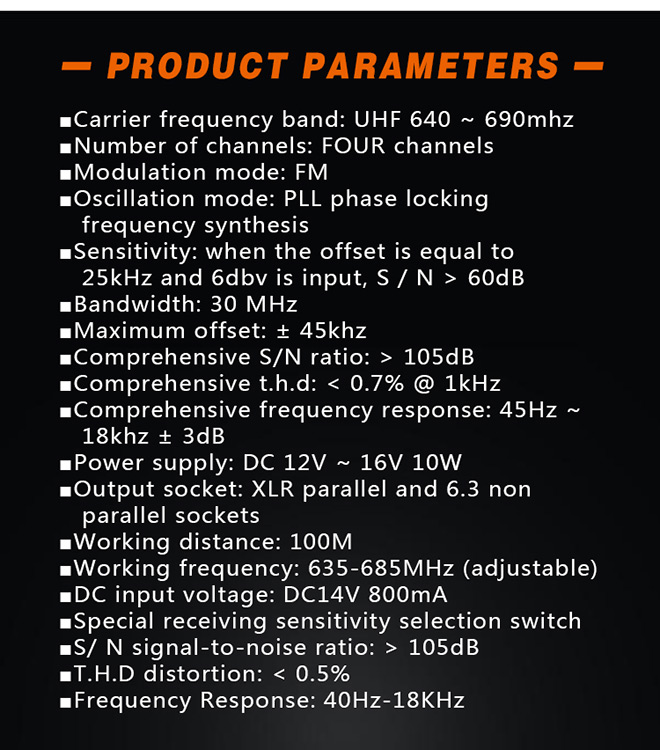

■ Carrier frequency band: UHF 640 ~ 690mhz
■ Number of channels: two channels
■ Modulation mode: FM
■ Oscillation mode: PLL phase locking frequency synthesis
■ Sensitivity: when the offset is equal to 25kHz and 6dbv is input, S / N > 60dB
■ Bandwidth: 30 MHz
■ Maximum offset: ± 45khz
■ Comprehensive s / N ratio: > 105dB
■ Comprehensive t.h.d: < 0.7% @ 1kHz
■ Comprehensive frequency response: 45Hz ~ 18khz ± 3dB
■ Power supply: DC 12V ~ 16V 10W

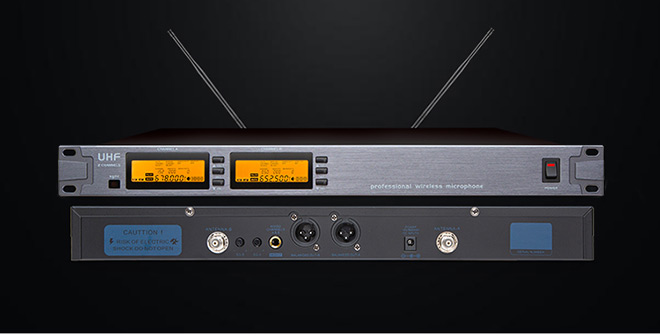

■ Output socket: XLR parallel and 6.3 non parallel sockets
■ Working distance: 100M
■ Working frequency: 635-685MHz (adjustable)
■ DC input voltage: DC14V 800mA
■ Special receiving sensitivity selection switch
■ S/ N signal-to-noise ratio: > 105dB
■ T.H.D distortion: < 0.5%
■ Frequency Response: 40Hz-18KHz
■ Noise Lock squelch control + voice code navigation lock squelch control transmitter parameters

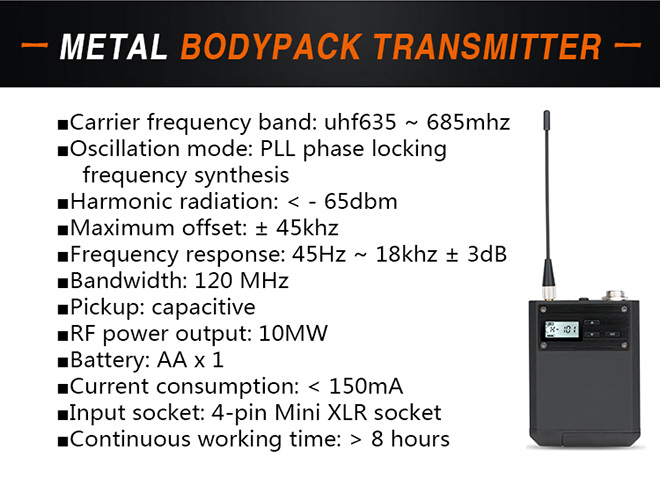

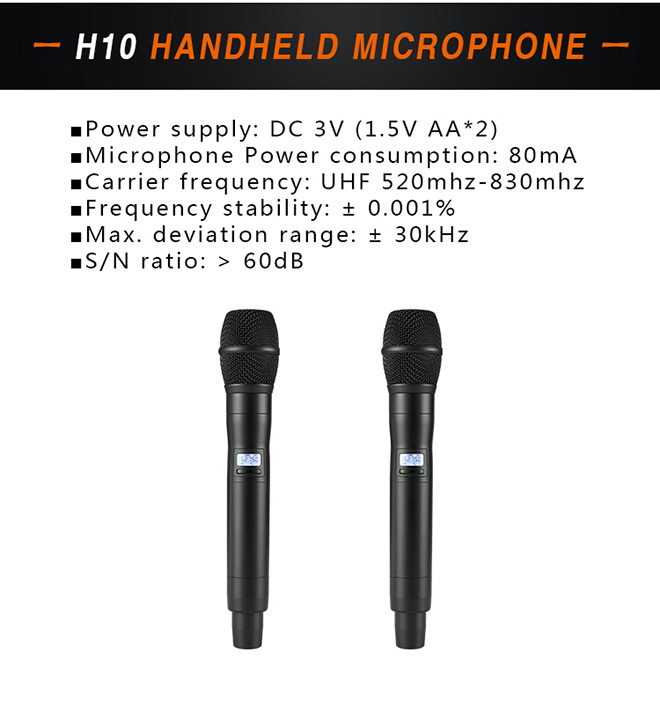

■ Transmitter parameter
■ Power supply: DC 3V (1.5V AA*2)
■ Microphone Power consumption: 80mA
■ Carrier frequency: UHF 520mhz-830mhz
■ Frequency stability: ± 0.001%
■ Max. deviation range: ± 30kHz
■ S/N ratio: > 60dB
