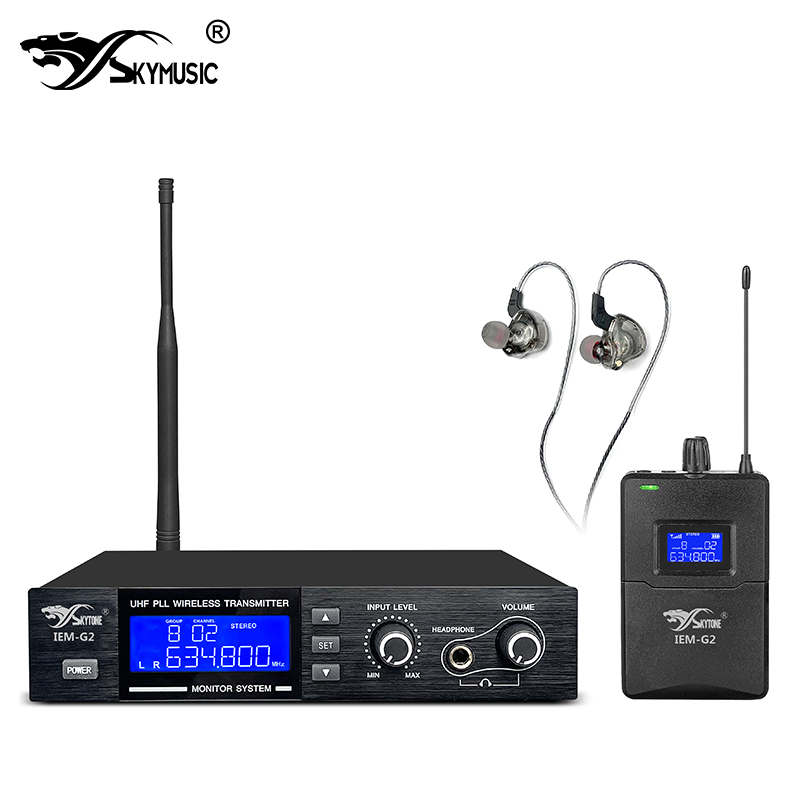

Features
·UHF phase lock circuit, stable and low harmonic radiation
·Frequency group and a group of users to set up and store the frequency, the default group is compatible with working frequency
·LCD display,transferring function by the button
·The transmitter and receiver are independent with mono and stereo modulation function
·Excellent circuit design to achieve the best signal to noise ratio, limited to reduce the auditory fatigue
·The receiver is coming with volume balance control channel,in which convenient for users to adjust the volume
·Compact, robust receiver configuration design
·The transmitter has 6.3mm stereo headset output monitor headset socket,the minimum impedance is 16 ohm
·Full frequency response,high degree of accuracy of the stereo

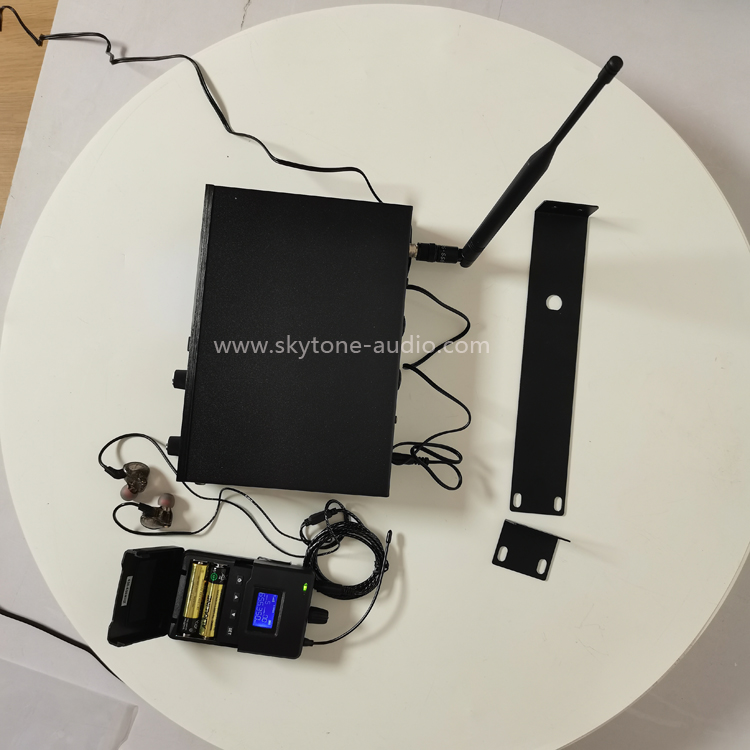

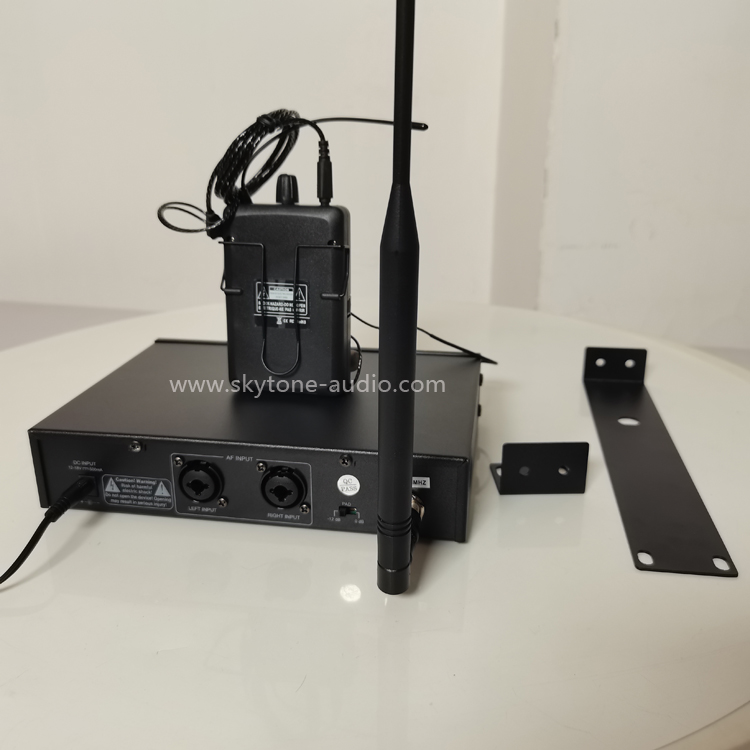

·Half frame,single channel transmit design,with rack mounting kit

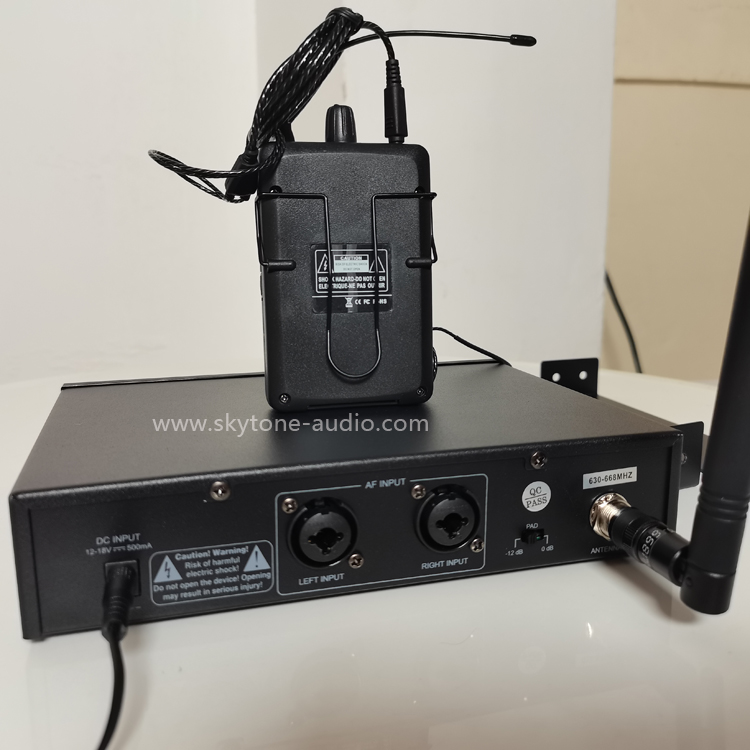

·Transmission audio input use balanced and unbalanced shared socket

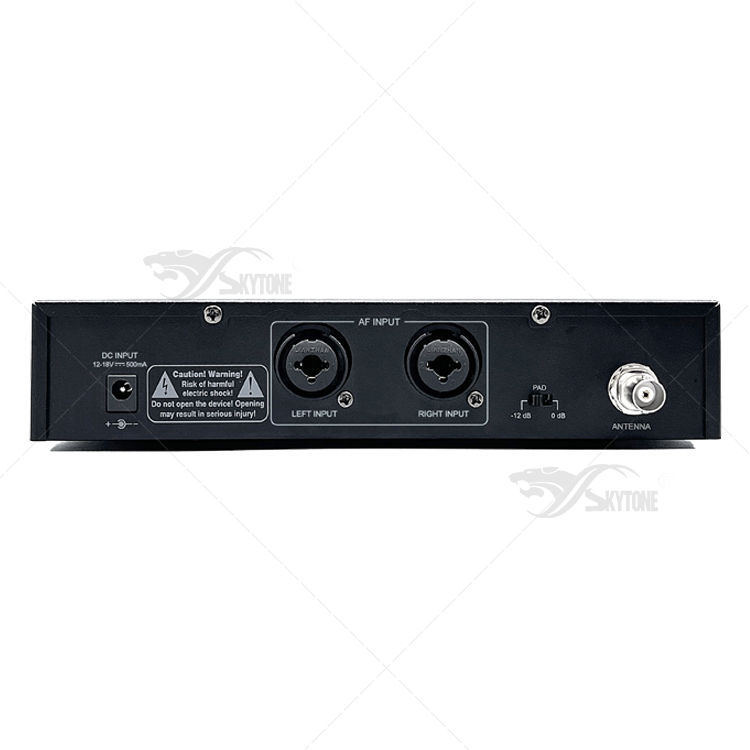

·Transmission AF input,the back panel is provided with 0dB and -12dB switching switch.

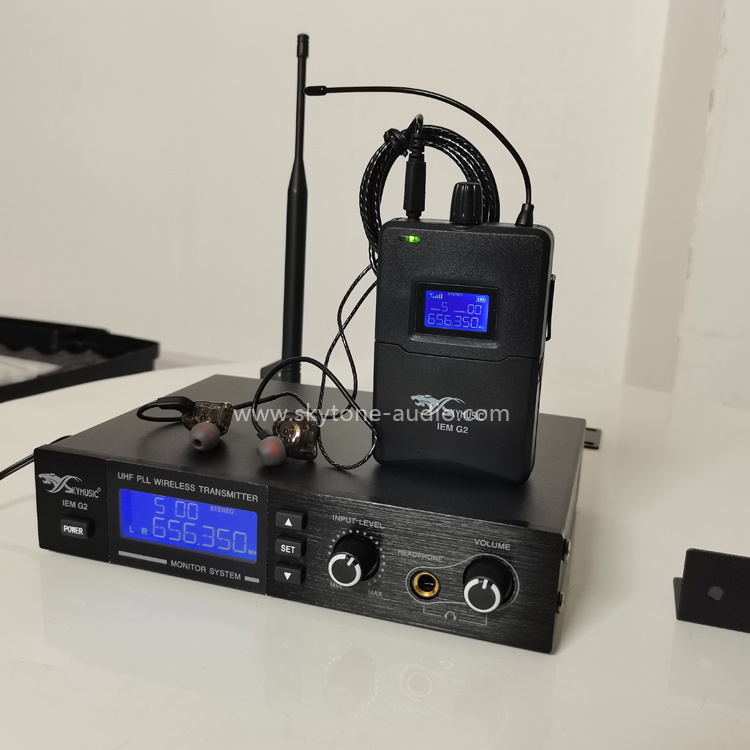

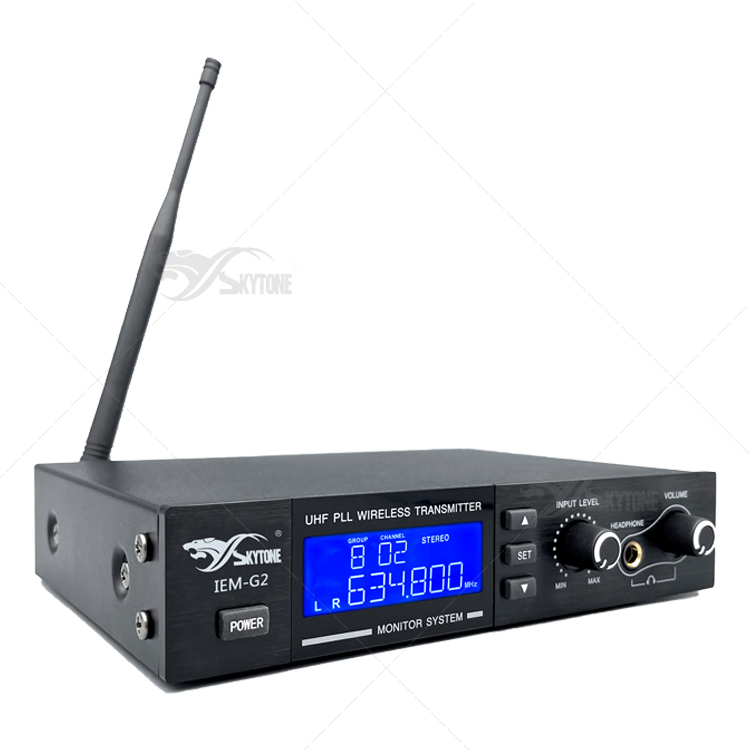

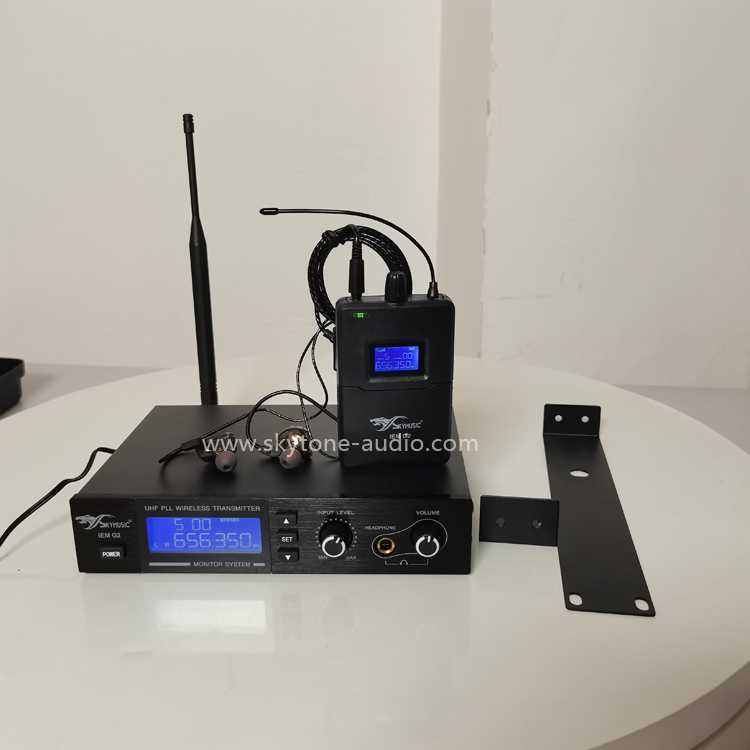

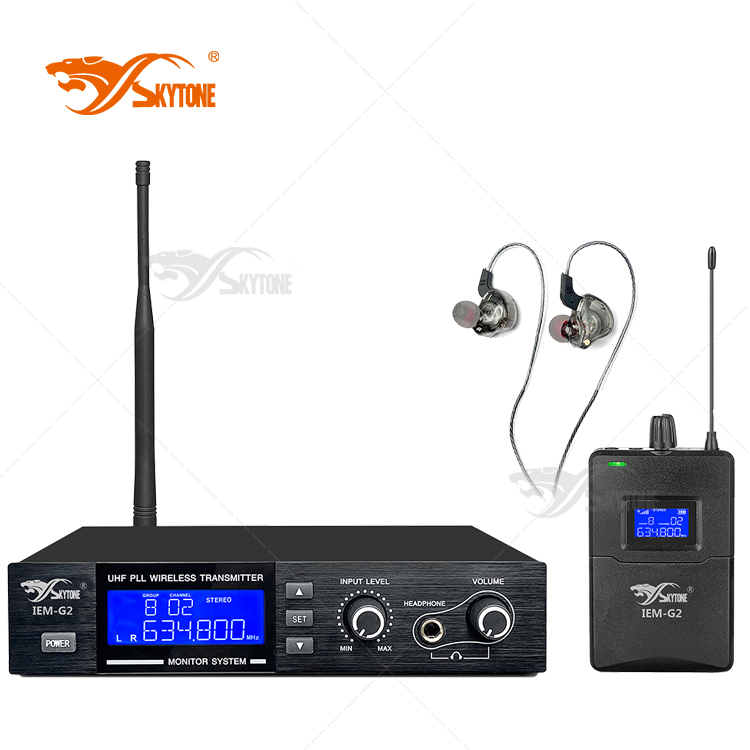

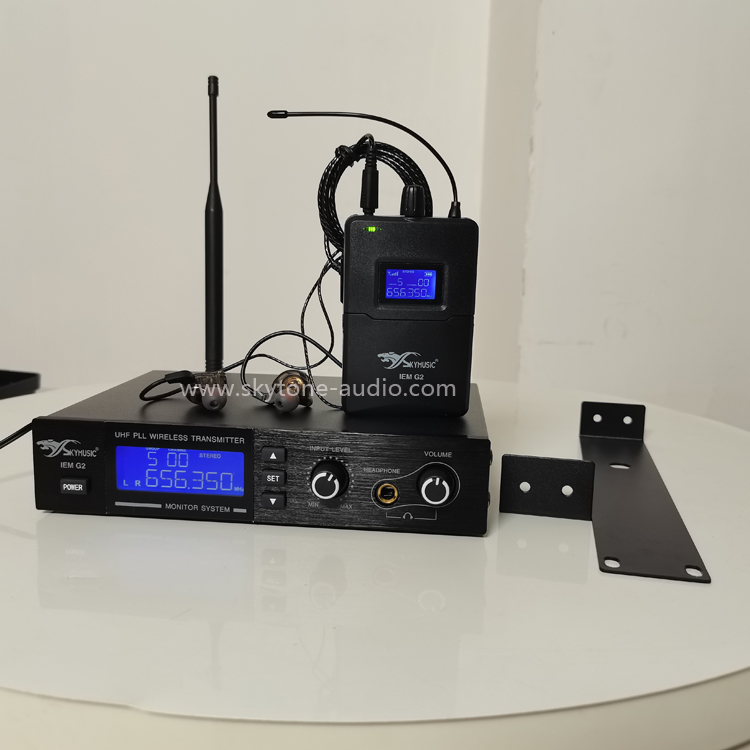

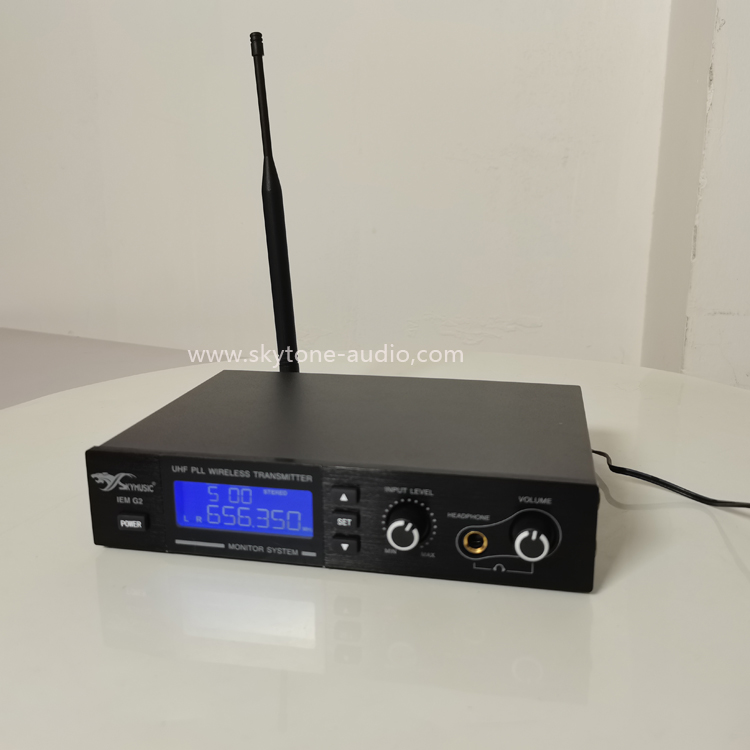

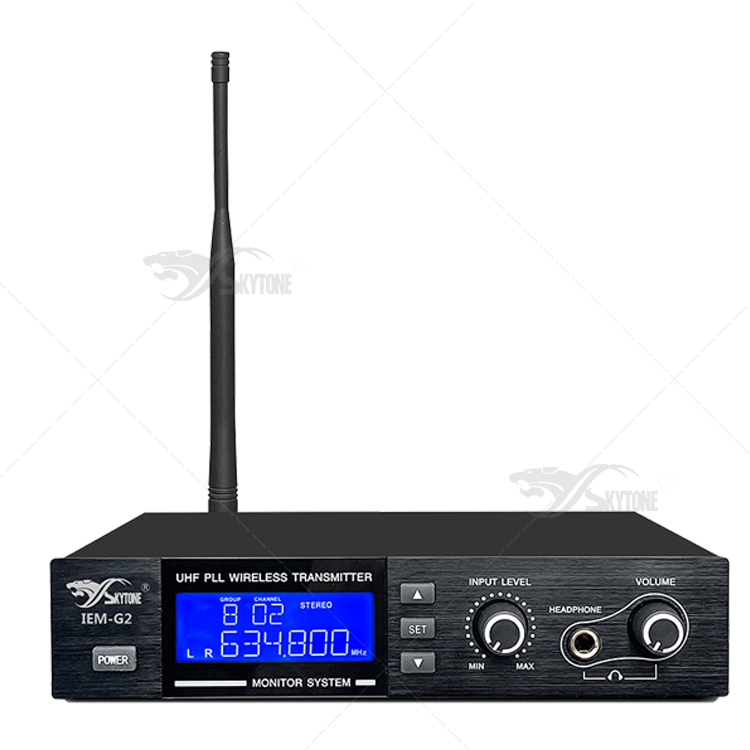

IEM-G2 Transmitter
·Transmission channel:Single channel
·Carrier Wave Frequency Range:550-932MHz(Depend on where you located)
·Oscillation mode: PLL Phase-locked Loop controlled
·Transmitter power:≧50mW(Depend on where you located)
·Frequency responses:20Hz-20KHz
·Audio input: XLR and 6.3mm composite socket
·Earphone output:6.3mm stereo socket,adjustable volume.
·Earphone output impedance:≧16Ω
·Modulation mode:DQPSK
·Bandwidth:300KHz

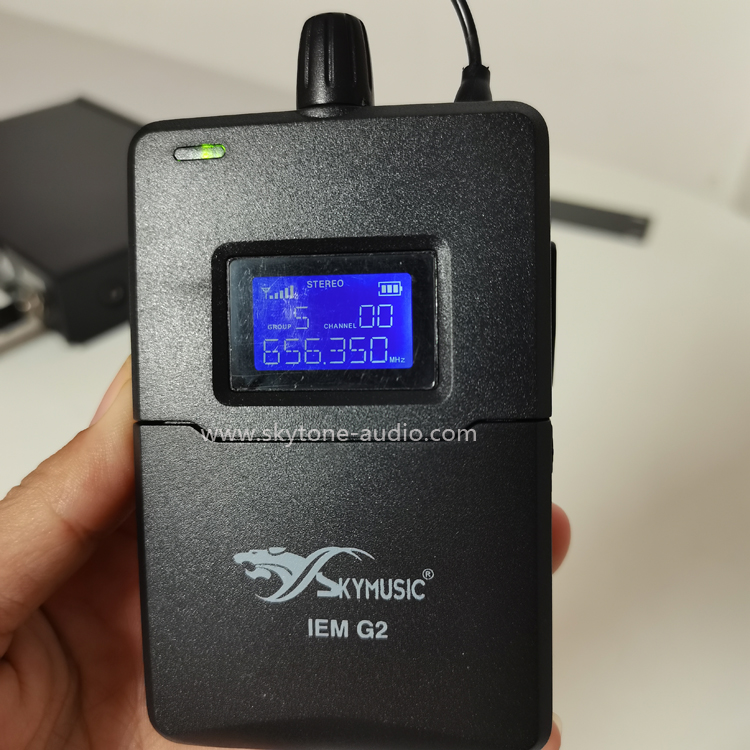

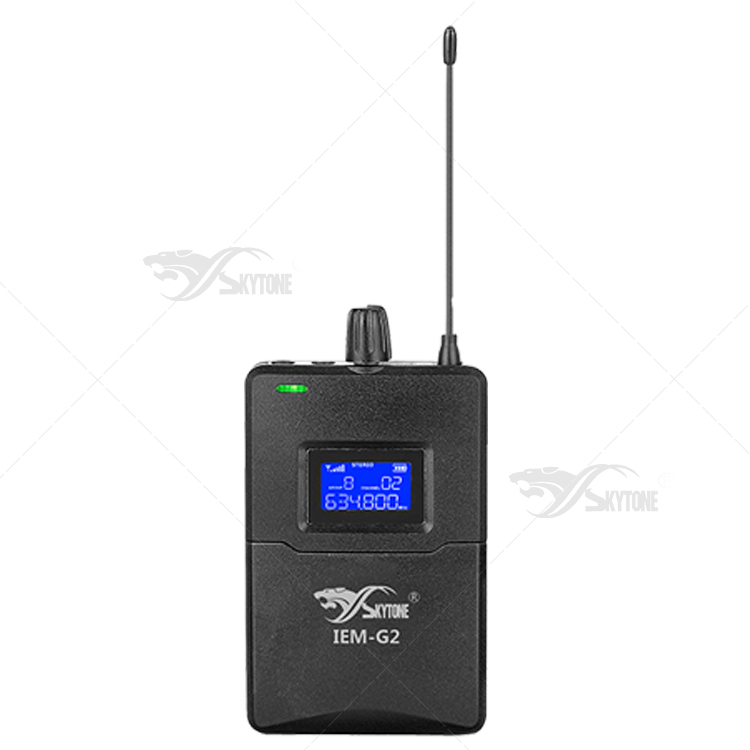

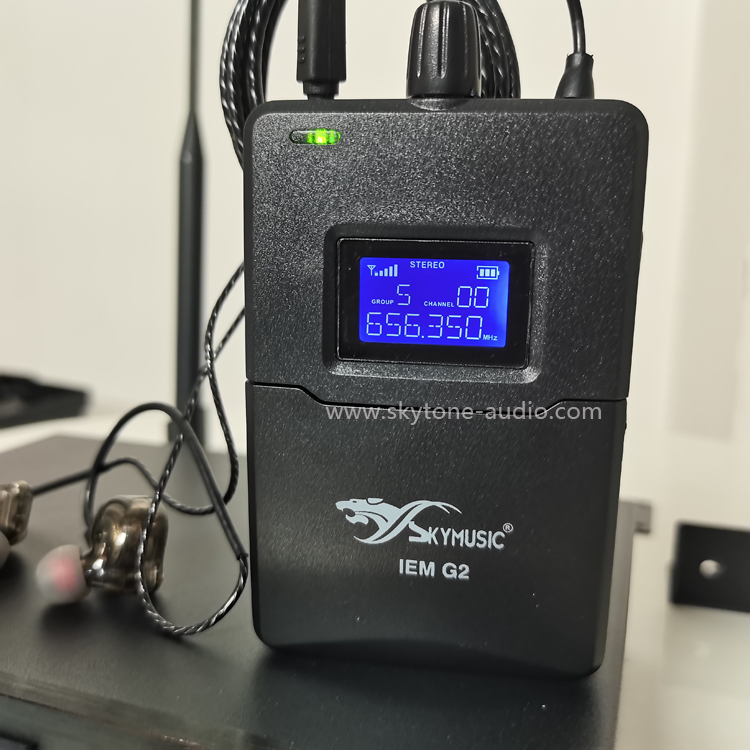

IEM-G2 Body-pack Receiver
· Receiving number: Unlimited
·Carrier Wave Frequency Range: 550-932MHz,(Depend on where you located)
·Oscillation mode: PLL Phase-locked Loop controlled
·Sensitivity: S/N>80dB base on input 6dBμV
·Stereo separation: ≧45dB,1KHz
·Frequency responses:20Hz-20KHz
·Output socket 3.5mm: 3.5mm stereo earphone socket
·Output power:2x50mW 1KHz(THD 3%)
·Earphone output impedance:≧16Ω
· Frequency response time:<3ms
·Audio encoding:PT Live
·Audio sampling:24bit/48KHz
