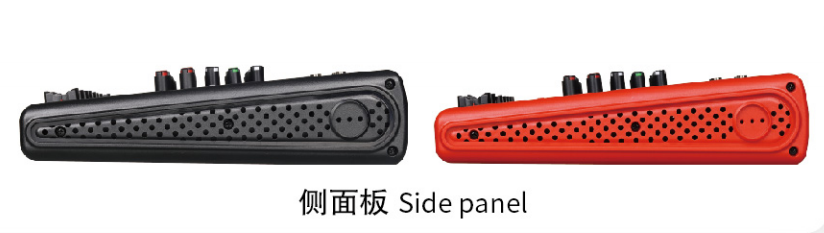

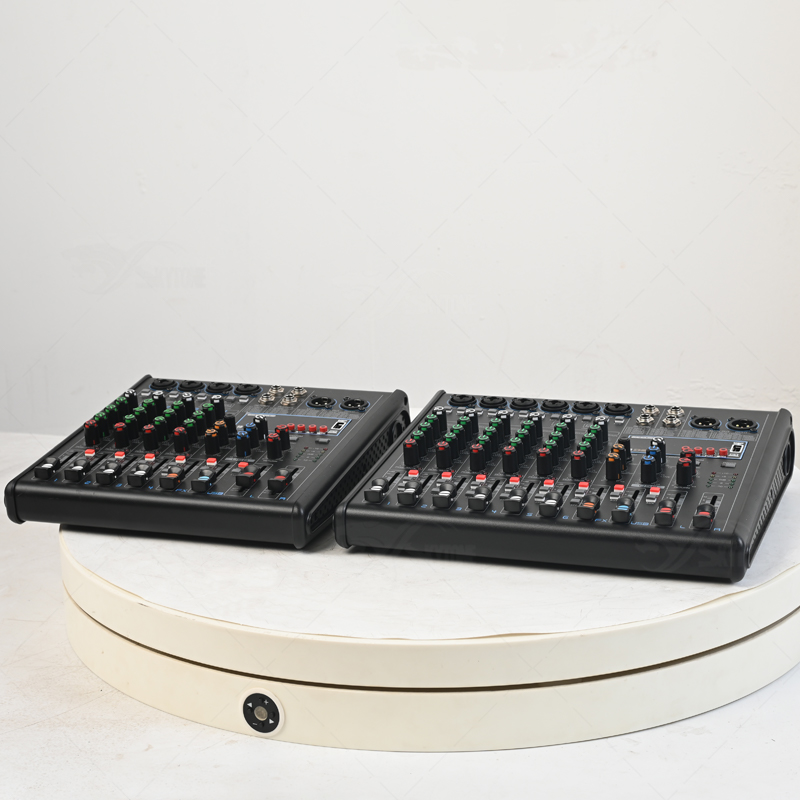

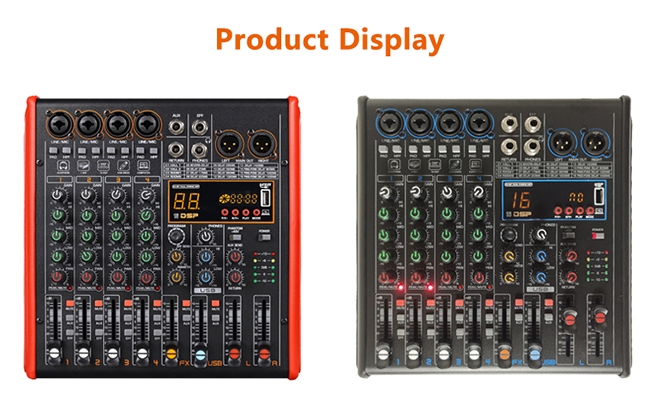

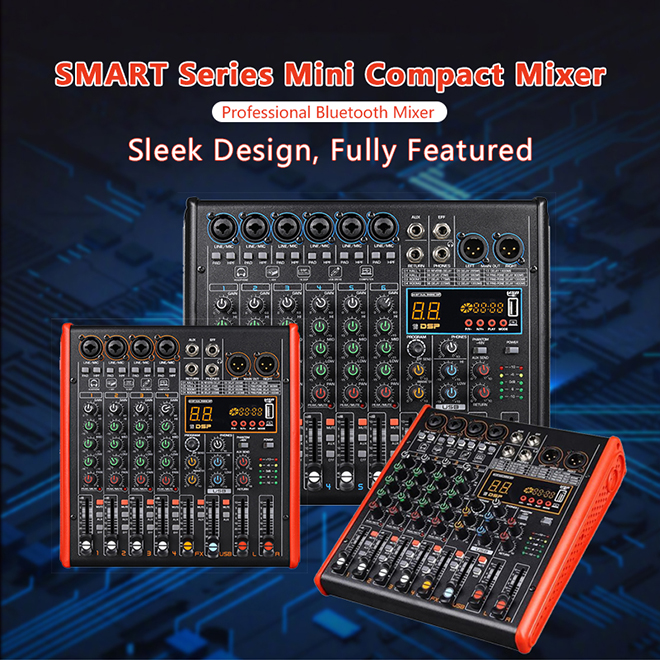

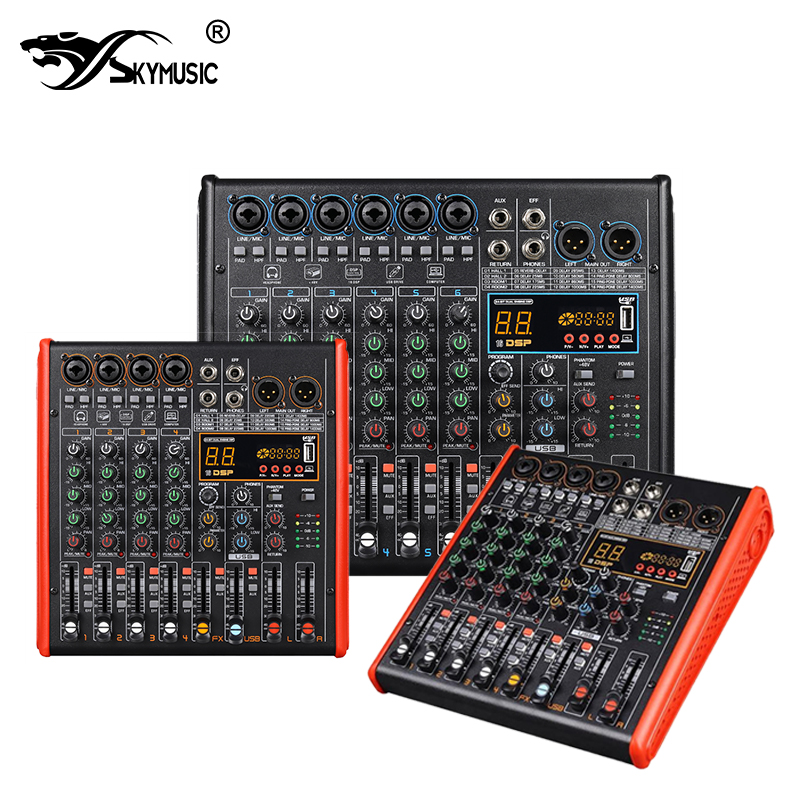

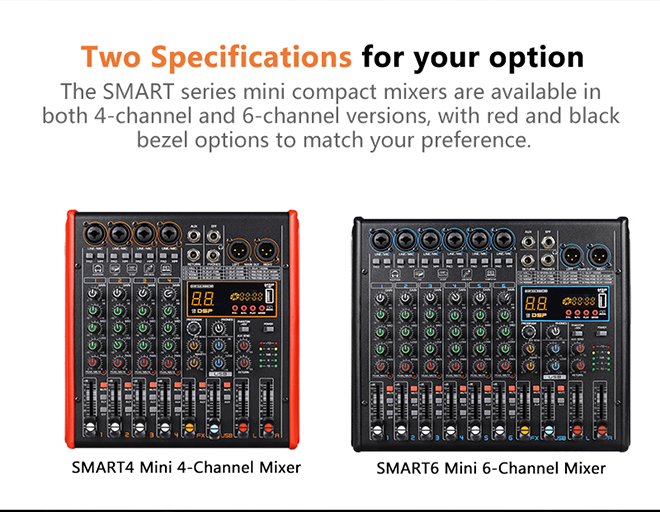

Skytone Smart series mini audio mixers have 4 channel and 6 channel,
fashion outlook and fully functions, with black and red edges for your option.

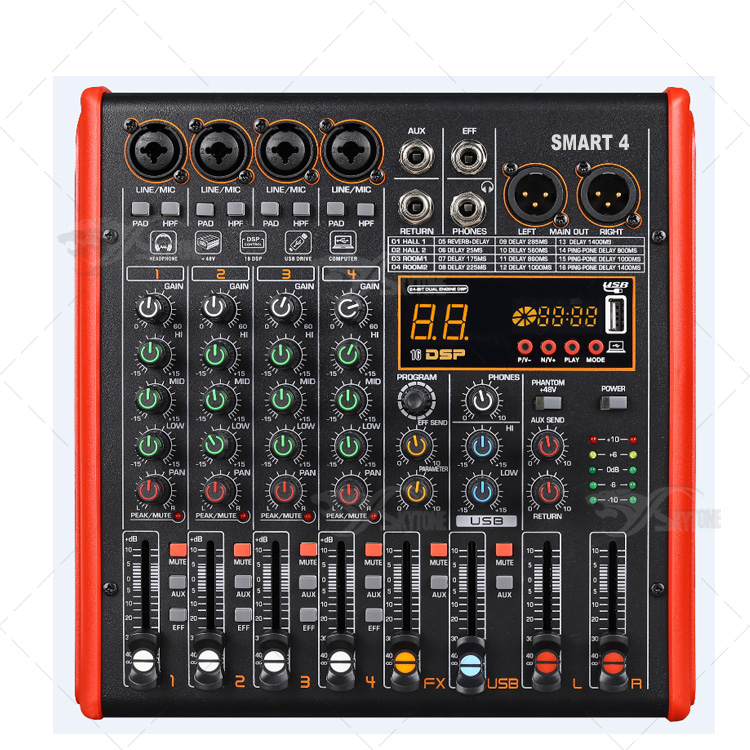

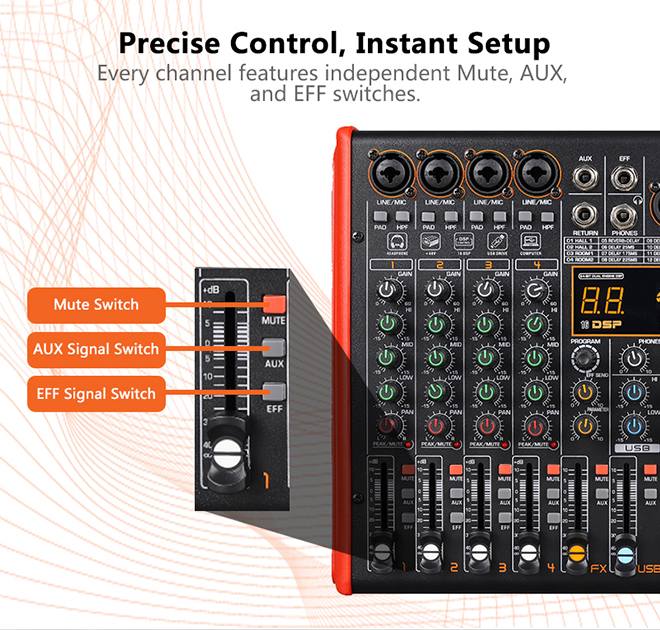

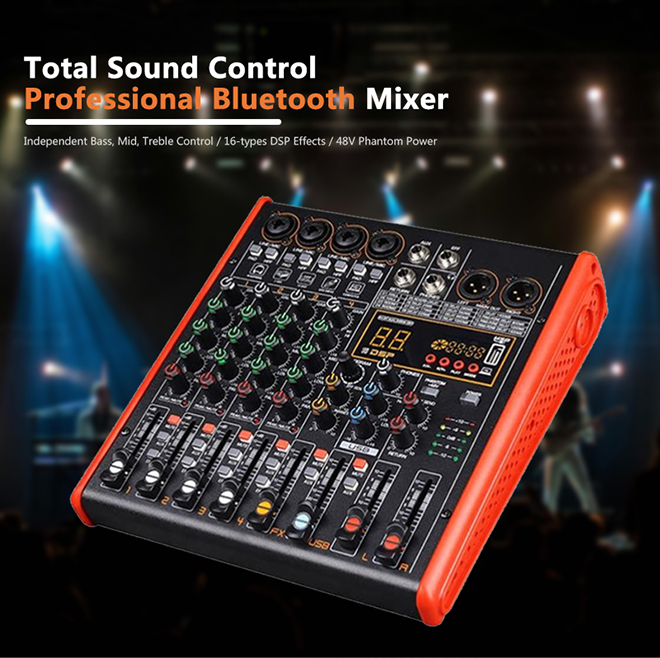

SMART4 Advantaged features:
Functional features:
1. Professional Bluetooth style mixing console, equipped with ultra-low noise discrete microphone preamplifier and+48V phantom power supply, powerful and complete functions, and beautiful sound quality.
2. Provide 4 Mic input interfaces that are compatible with 4 line input interfaces.
3. Each channel is equipped with PAD and HPF buttons.
4. Each mono input channel is equipped with 3 EQ segments and peak indicator lights.
5. Provide 2 sets of auxiliary outputs and 1 headphone monitoring output.

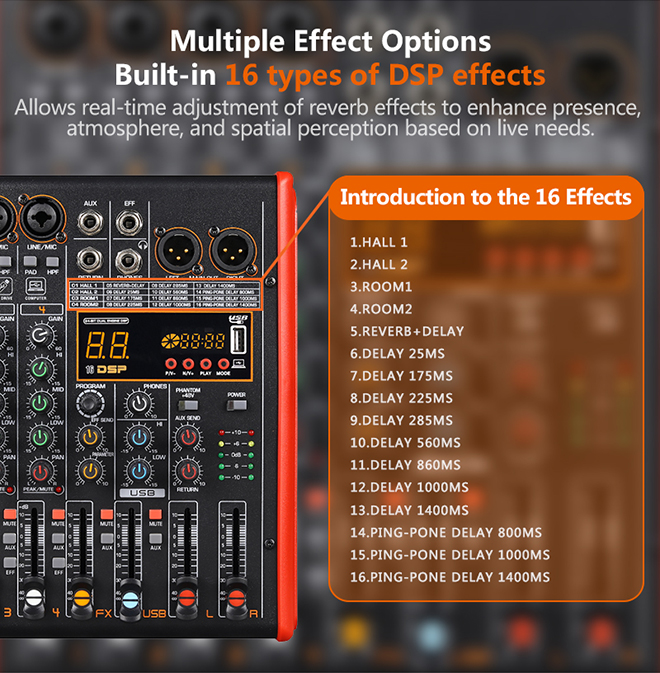

6. Built in 16 types of DSP effectors.

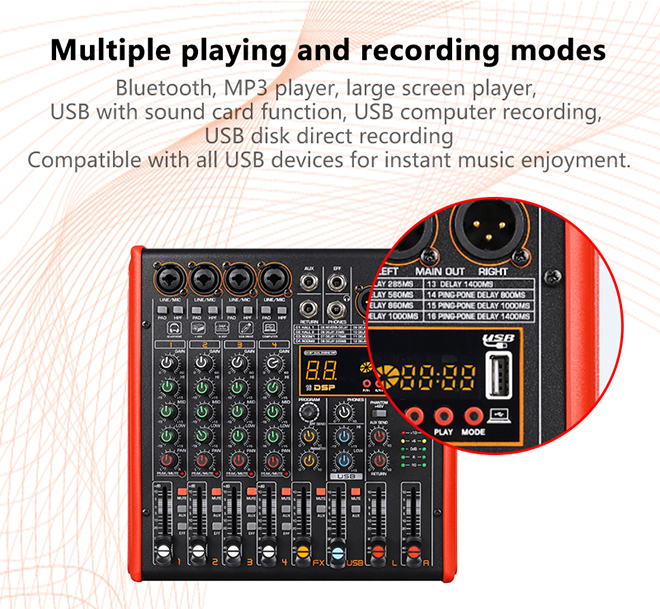

7. Bluetooth, MP3 player, large screen player, USB with sound card function, USB computer recording, USB disk recording direct recording

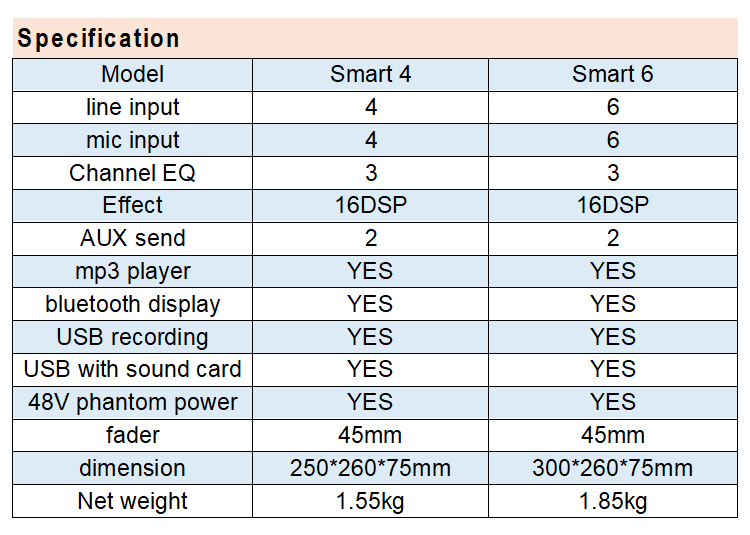

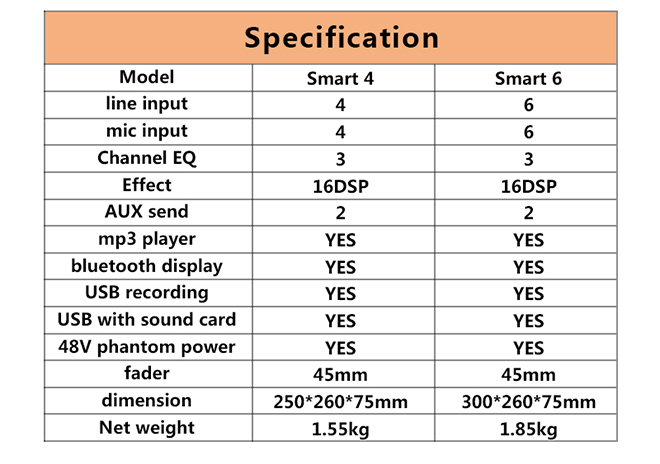

Technical parameters:
1. Microphone input: 4 channels (4 XLR interfaces)
2. Line input: 4-way single plug mono interface
3. Each route is equipped with PAD and HPF buttons
4. Bluetooth, MP3 player, large screen player, USB with sound card function, USB computer recording, USB disk recording direct recording
5. Output path: 2 sets of auxiliary outputs, 1 headphone monitoring output
6. Effector: Built in 16 DSP effectors
7. Phantom power supply: equipped with a 48V phantom power switch
8. Frequency response: 20Hz-20kHz, ± 3dB
9. Distortion:<0.003% (A-weighted)
10. Microphone balanced input noise: -119dB (A-weighted)
11. Common mode rejection ratio: 60dB
12. Single channel input gain: MIC: 0 to 48dB, LINE: -33 to+15dB
13. Stereo channel input gain: LINE: -8 to+6dB
14. Main mix crosstalk: -87dBu (A-weighted)
15. Channel crosstalk: -85dBu (A-weighted)
16. Maximum output level:+20dBu
17. MIC input high pass filtering: 75Hz, 18dB/oct
18. Single channel equalization: High frequency: ± 15dB@12KHz ; Intermediate frequency: ± 12dB@2.5KHz ; Low frequency: ± 15dB@80Hz

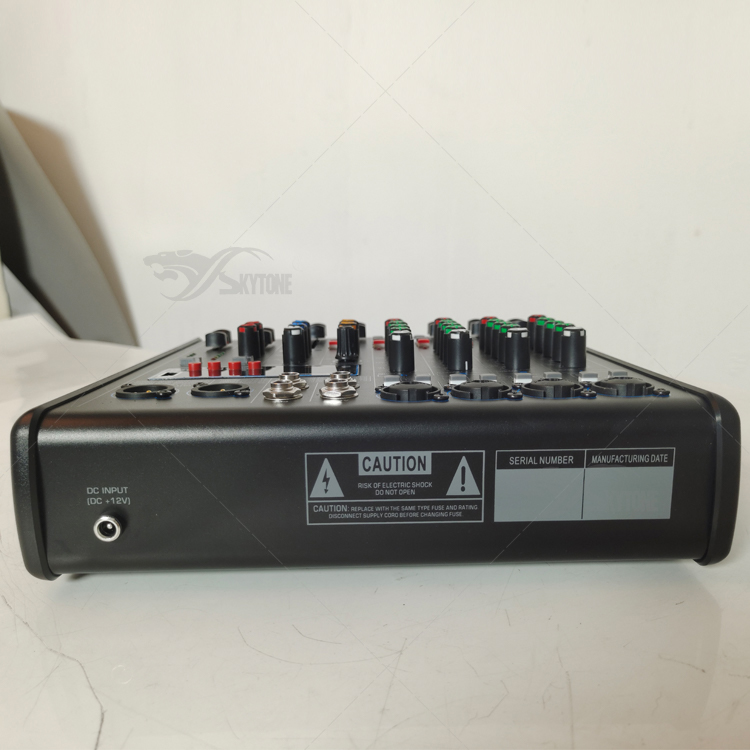

19. Power supply: External DC Input (DC+12V) power adapter
20. Power consumption: ≤ 18W

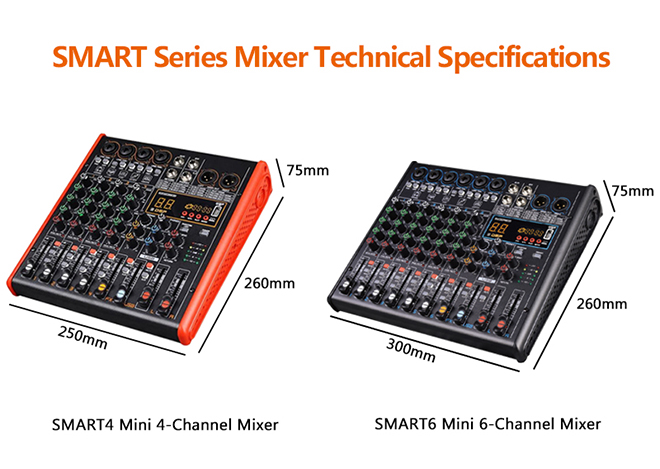

21. Size (L x W x H): 250 * 260 * 70mm
22. Weight: 1.55kg

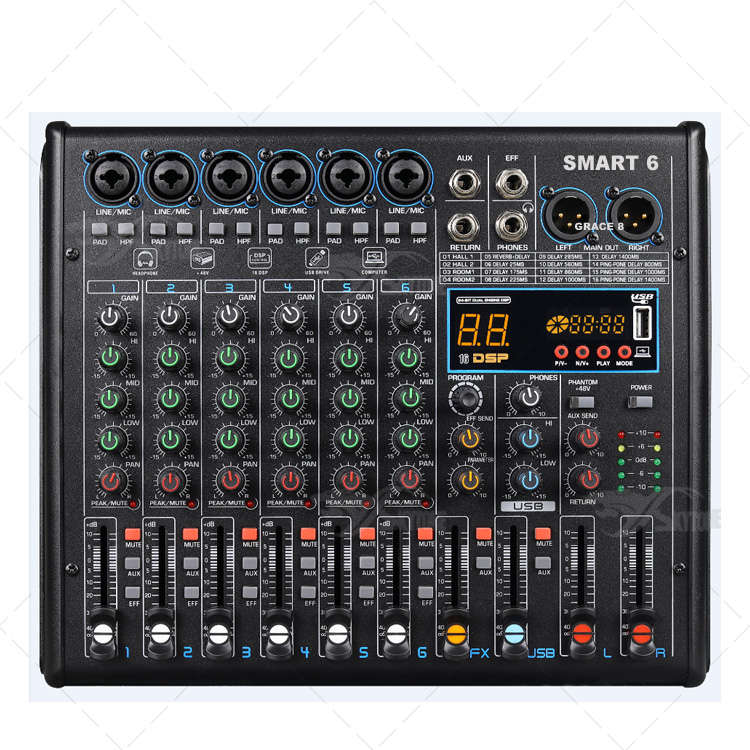

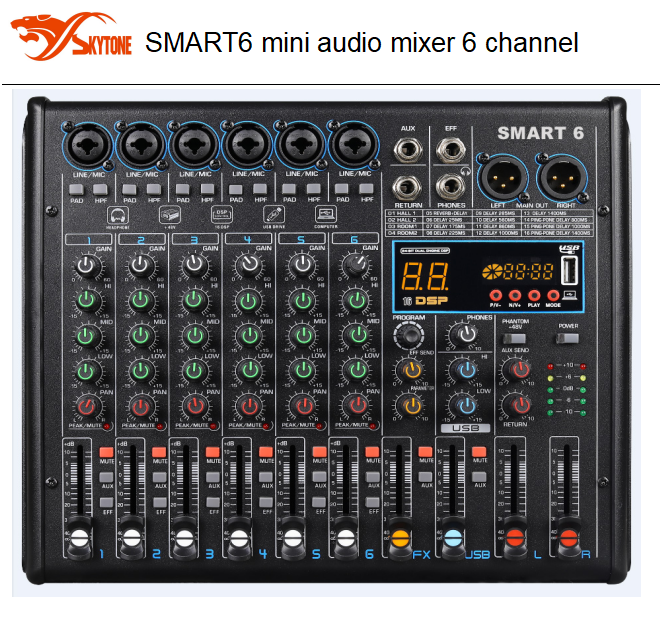

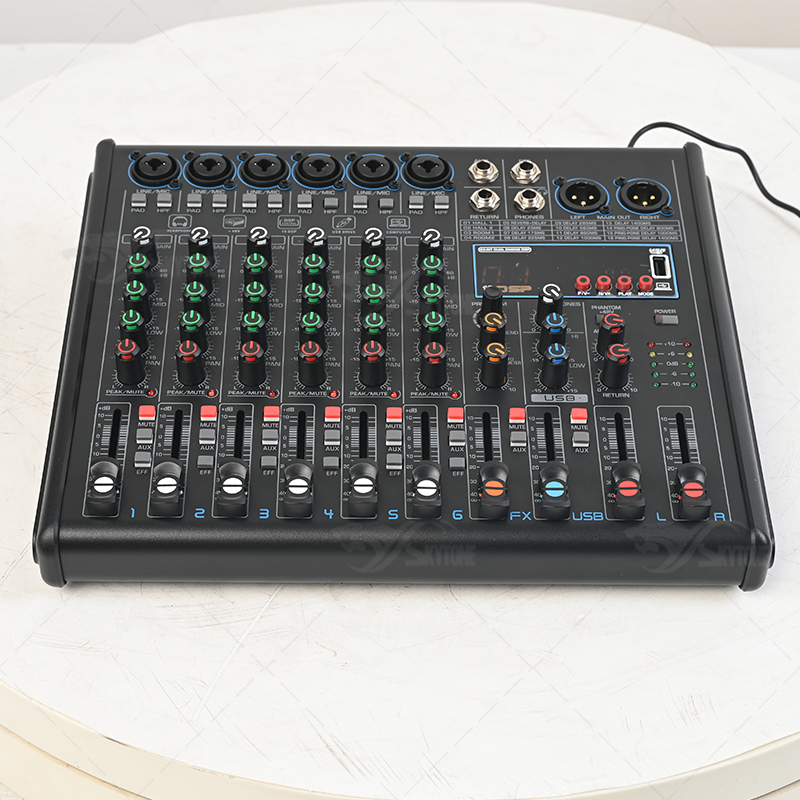

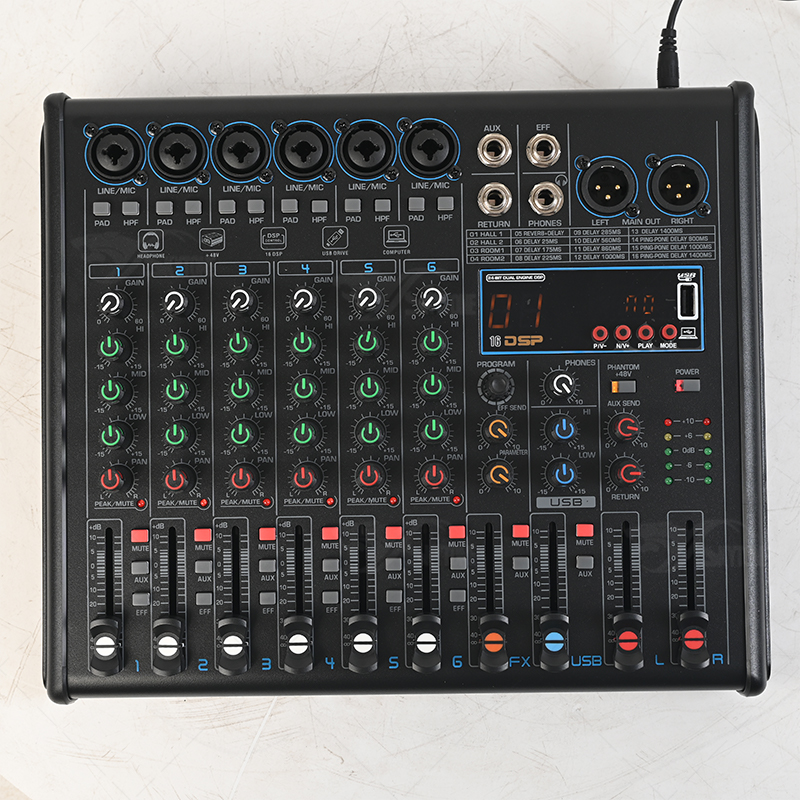

SMART6 Advantaged features:
Functional features:
1. Professional Bluetooth style mixing console, equipped with ultra-low noise discrete microphone preamplifier and+48V phantom power supply, powerful and complete functions, and beautiful sound quality.
2. Provide 6 Mic input interfaces that are compatible with 6 line input interfaces.
3. Each route is equipped with PAD and HPF buttons.
4. Each mono input channel is equipped with 3 EQ segments and peak indicator lights.
5. Provide 2 sets of auxiliary outputs and 1 headphone monitoring output.
6. Built in 16 types of DSP effectors.
7. Bluetooth, MP3 player, large screen player, USB with sound card function, USB computer recording, USB disk recording direct recording
Technical parameters:
1. Microphone input: 6 channels (6 XLR interfaces)
2. Line input: 6-way single plug mono interface
3. Each route is equipped with PAD and HPF buttons
4. Bluetooth, MP3 player, large screen player, USB with sound card function, USB computer recording, USB disk recording direct recording
5. Output path: 2 sets of auxiliary outputs, 1 headphone monitoring output
6. Effector: Built in 16 DSP effectors
7. Phantom power supply: equipped with a 48V phantom power switch
8. Frequency response: 20Hz-20kHz, ± 3dB
9. Distortion:<0.003% (A-weighted)
10. Microphone balanced input noise: -119dB (A-weighted)
11. Common mode rejection ratio: 60dB
12. Single channel input gain: MIC: 0 to 48dB, LINE: -33 to+15dB
13. Stereo channel input gain: LINE: -8 to+6dB
14. Main mix crosstalk: -87dBu (A-weighted)
15. Channel crosstalk: -85dBu (A-weighted)
16. Maximum output level:+20dBu
17. MIC input high pass filtering: 75Hz, 18dB/oct
18. Single channel equalization: High frequency: ± 15dB@12KHz ; Intermediate frequency: ± 12dB@2.5KHz ; Low frequency: ± 15dB@80Hz

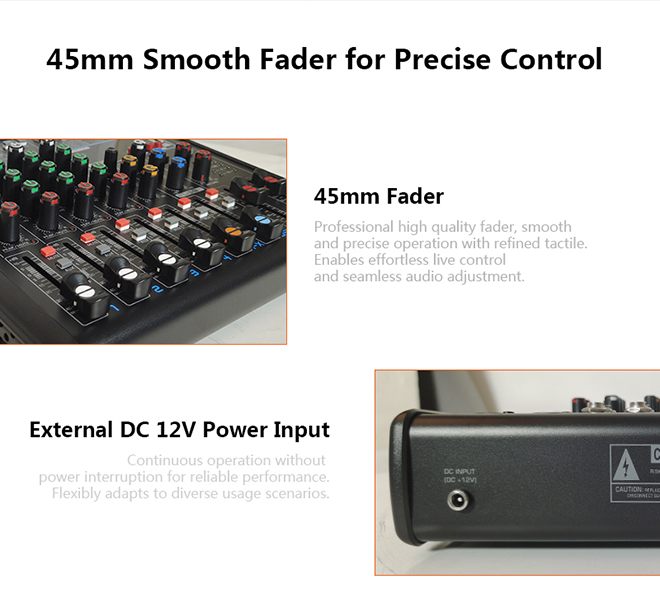

19. Power supply: External DC Input (DC+12V) power adapter
20. Power consumption: ≤ 18W
21. Size (L x W x H): 300 * 260 * 70mm
22. Weight: 1.85kg
