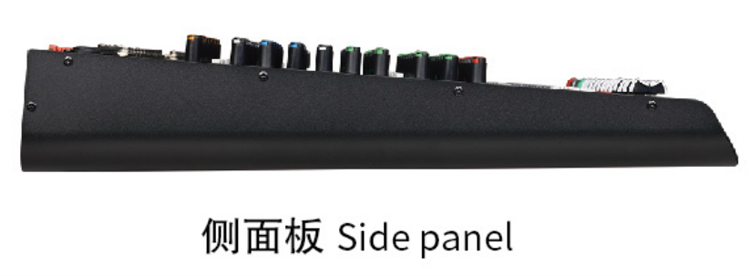

This DM series is exactly the same shape as Midas DM12,DM16

The chassis is made in the shape of an imported Midas DM12 16.

Original Midas DM series has no reverberation function or four groups.

We have strengthened more functions according to the original structure.

Our extra functions are reverb, four groups, low frequency output,

and Bluetooth MP3.

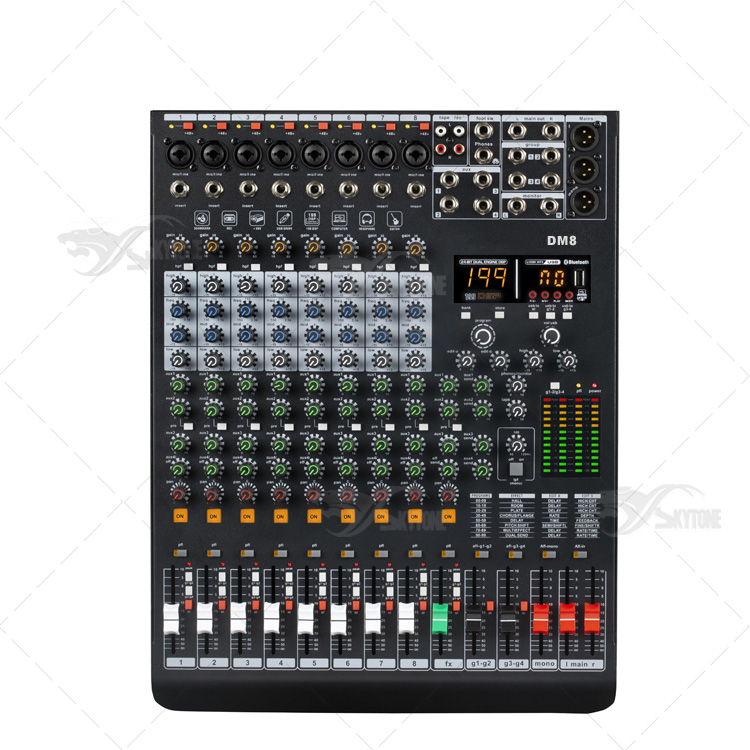

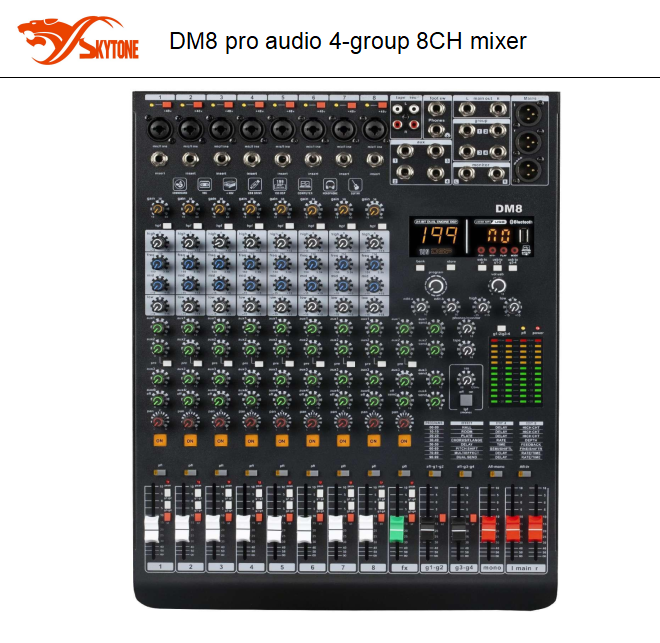

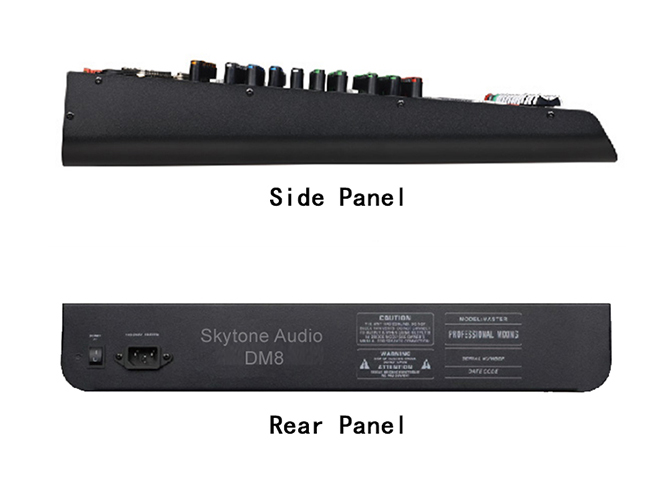

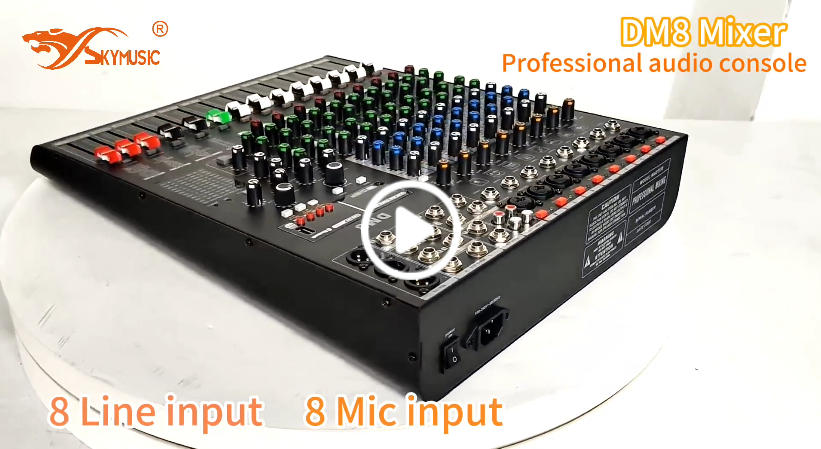

DM8 Functional features:

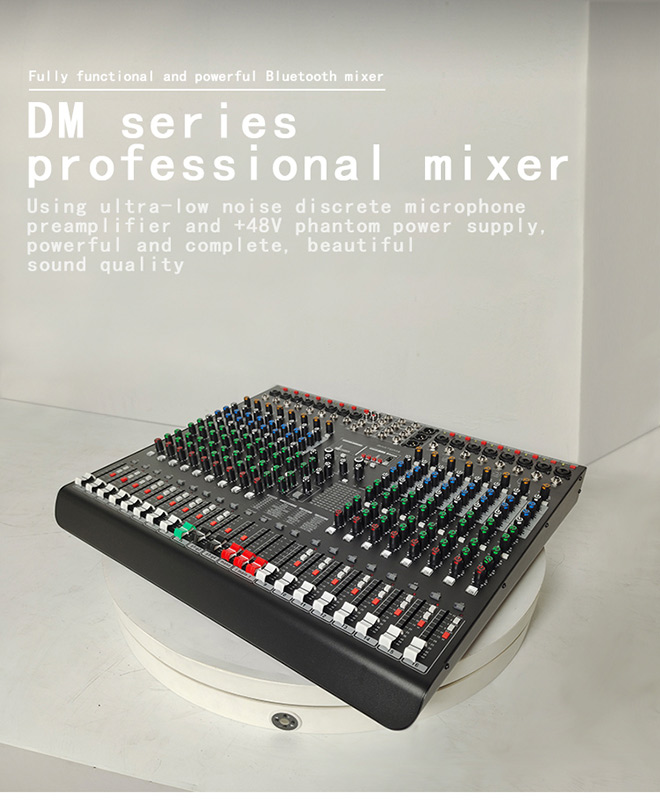

1. Professional Bluetooth style mixing console, equipped with ultra-low noise discrete microphone preamplifier and+48V phantom power supply, powerful and complete functions, and beautiful sound quality.

2. Provide 8-way Mic input interface compatible with 8-way line input interface, with 48V phantom power supply.

3. Provide 8 channels of+48V phantom power supply and dual row level lights.

4. Each mono input channel is equipped with 4 EQ segments (stereo three segment), and the branching channels are equipped with pressure limit control and peak indicator lights.

5. Provide 4 sets of auxiliary outputs, 4 sets of outputs, 1 set of stereo monitoring output, 1 set of headphone monitoring output, and 1 set of ultra low frequency output.

6. Built in 199 bit DSP effector.

7. Bluetooth, MP3 player, large screen player, USB with sound card function, USB computer recording, USB disk recording direct recording

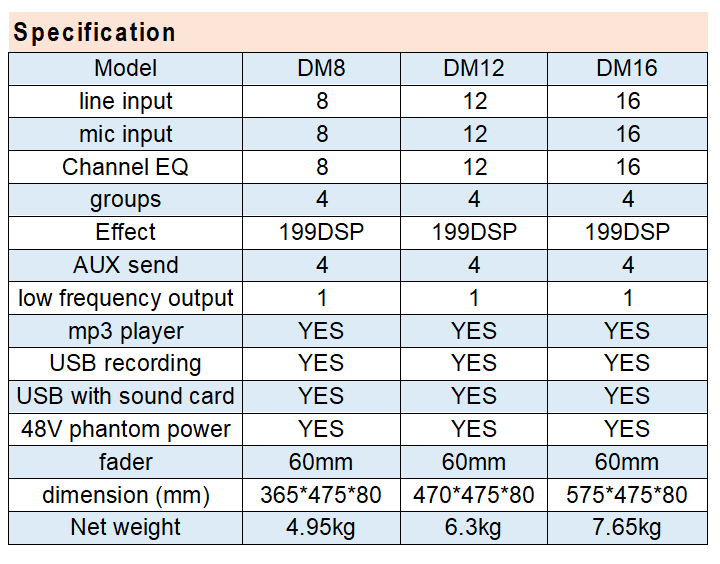

Technical parameters:

1. Microphone input: 8 channels (8 dual use XLR interfaces)

2. Line input: 8-way single plug mono channel

3. Provide 2 rows of level lights

4. The branching channel is equipped with pressure limit control

5. Output: 4 sets of auxiliary outputs, 4 sets of outputs, 1 set of stereo monitoring output, 1 set of headphone monitoring output, and 1 set of ultra low frequency output

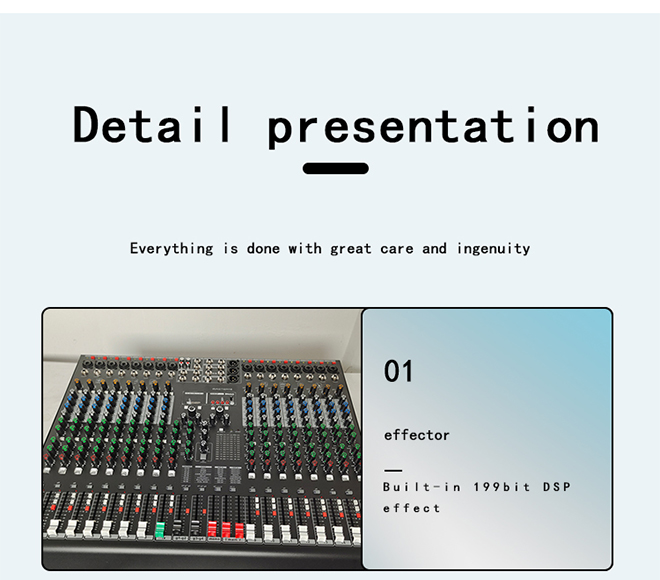

6. Effector: 199 bit DSP Effector

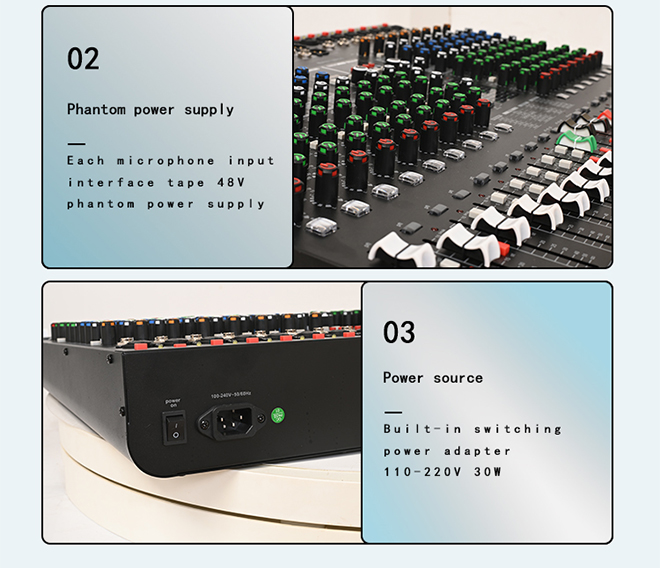

7. Phantom power supply: Each microphone input interface comes with a 48V phantom power supply

8. Frequency response: 20Hz-20kHz, ± 3dB

9. Distortion:<0.003% (A-weighted)

10. Microphone balanced input noise: -119dB (A-weighted)

11. Common mode rejection ratio: 60dB

12. Single channel input gain: MIC: 0 to 48dB, LINE: -33 to+15dB

13. Stereo channel input gain: LINE: -8 to+6dB

14. Main mix crosstalk: -87dBu (A-weighted)

15. Channel crosstalk: -85dBu (A-weighted)

16. Maximum output level:+20dBu

17. MIC input high pass filtering: 75Hz, 18dB/oct

18. Single channel equalization: High frequency: ± 15dB@12KHz ; Intermediate frequency: ± 12dB@2.5KHz ; Low frequency: ± 15dB@80Hz

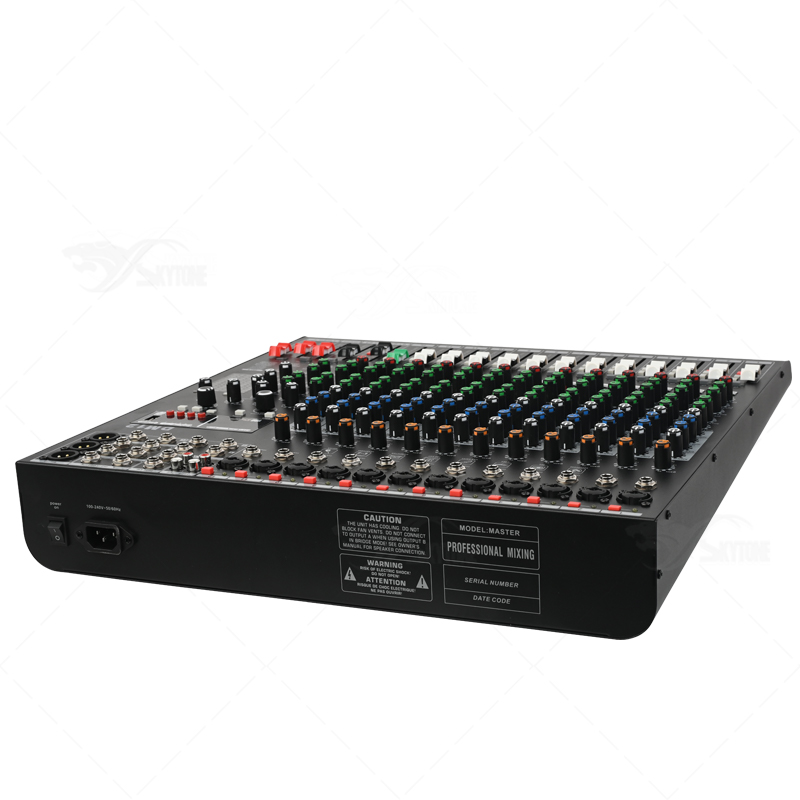

19. Power supply: Built in switch power adapter 110-220V, 30W

20. Power consumption: ≤ 23W

21. Size (L x W x H): 365 * 475 * 80mm

22. Weight: 4.95kg

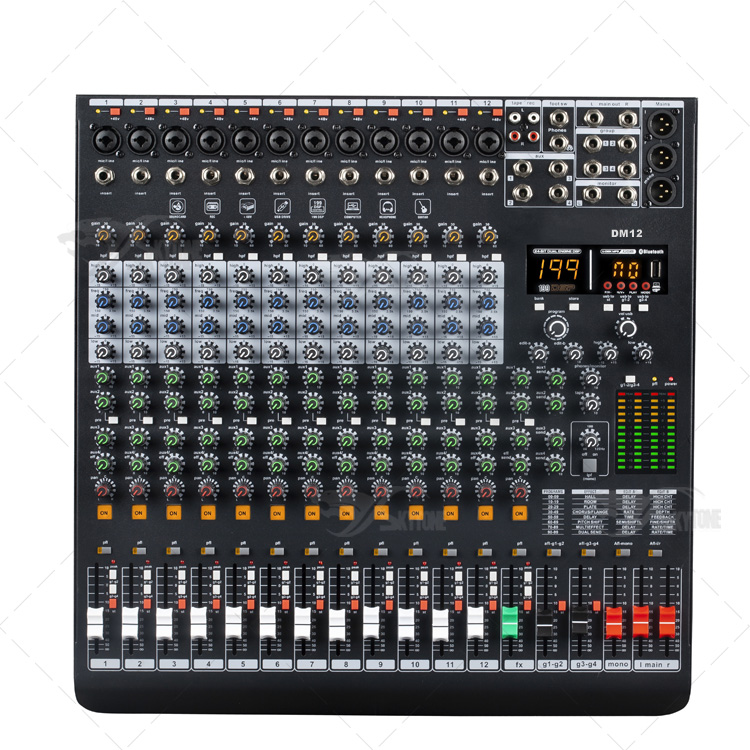

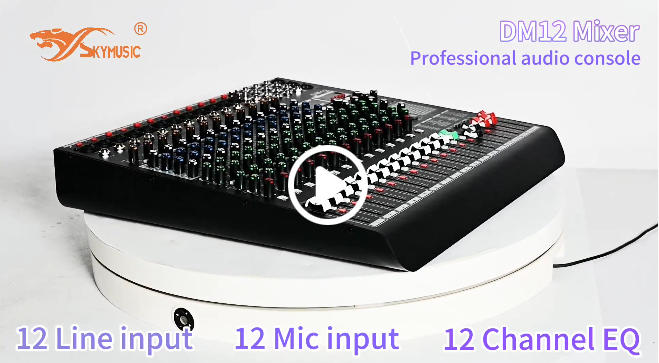

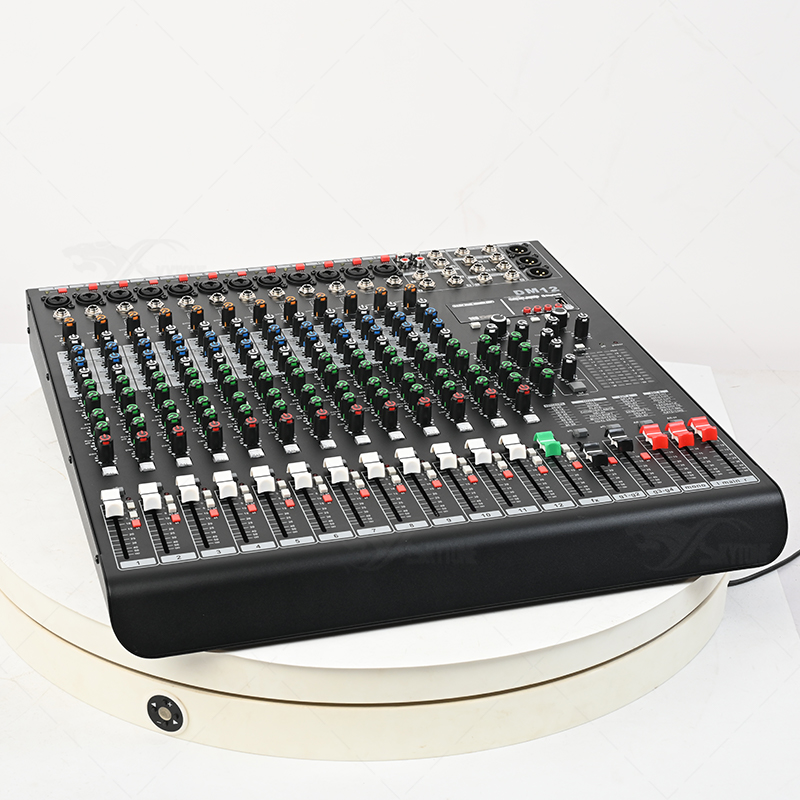

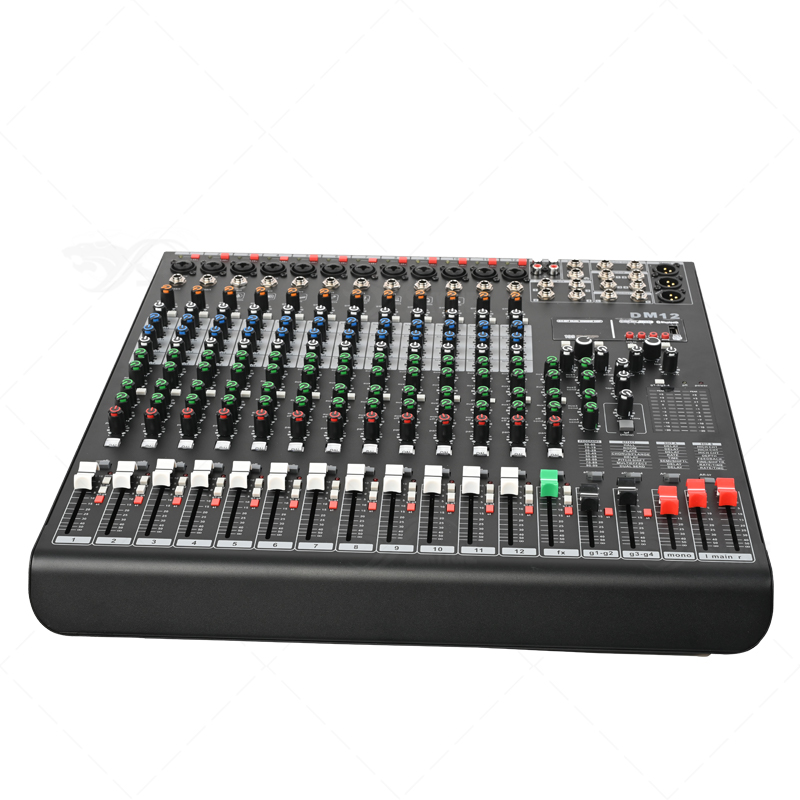

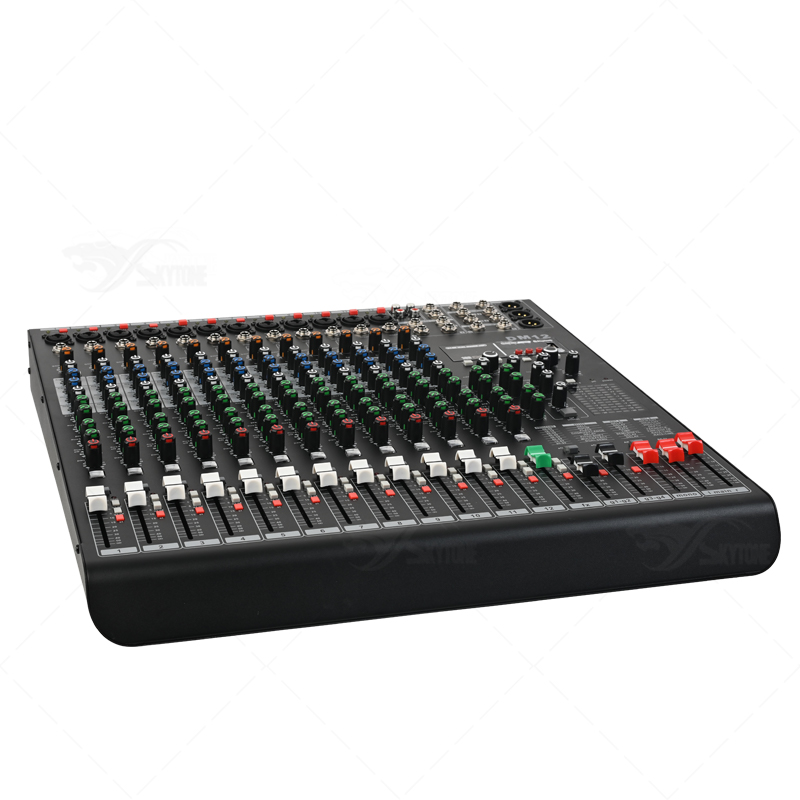

DM12 Functional features:

1. Professional Bluetooth style mixing console, equipped with ultra-low noise discrete microphone preamplifier and+48V phantom power supply, powerful and complete functions, and beautiful sound quality.

2. Provide 12 Mic input interfaces compatible with 12 line input interfaces, with a 48V phantom power supply.

3. Provide 12 channels of+48V phantom power supply and dual row level lights.

4. Each mono input channel is equipped with 4 EQ segments (stereo three segment), and the branching channels are equipped with pressure limit control and peak indicator lights.

5. Provide 4 sets of auxiliary outputs, 4 sets of outputs, 1 set of stereo monitoring output, 1 set of headphone monitoring output, and 1 set of ultra low frequency output.

6. Built in 199 bit DSP effector.

7. Bluetooth, MP3 player, large screen player, USB with sound card function, USB computer recording, USB disk recording direct recording

Technical parameters:

1. Microphone input: 12 channels (12 dual use XLR interfaces)

2. Line input: 12 single plug mono channels

3. Provide 2 rows of level lights

4. The branching channel is equipped with pressure limit control

5. Output: 4 sets of auxiliary outputs, 4 sets of outputs, 1 set of stereo monitoring output, 1 set of headphone monitoring output, and 1 set of ultra low frequency output

6. Effector: 199 bit DSP Effector

7. Phantom power supply: Each microphone input interface comes with a 48V phantom power supply

8. Frequency response: 20Hz-20kHz, ± 3dB

9. Distortion:<0.003% (A-weighted)

10. Microphone balanced input noise: -119dB (A-weighted)

11. Common mode rejection ratio: 60dB

12. Single channel input gain: MIC: 0 to 48dB, LINE: -33 to+15dB

13. Stereo channel input gain: LINE: -8 to+6dB

14. Main mix crosstalk: -87dBu (A-weighted)

15. Channel crosstalk: -85dBu (A-weighted)

16. Maximum output level:+20dBu

17. MIC input high pass filtering: 75Hz, 18dB/oct

18. Single channel equalization: High frequency: ± 15dB@12KHz ; Intermediate frequency: ± 12dB@2.5KHz ; Low frequency: ± 15dB@80Hz

19. Power supply: Built in switch power adapter 110-220V, 30W

20. Power consumption: ≤ 23W

21. Size (L x W x H): 470 * 475 * 80mm

22. Weight: 6.3kg

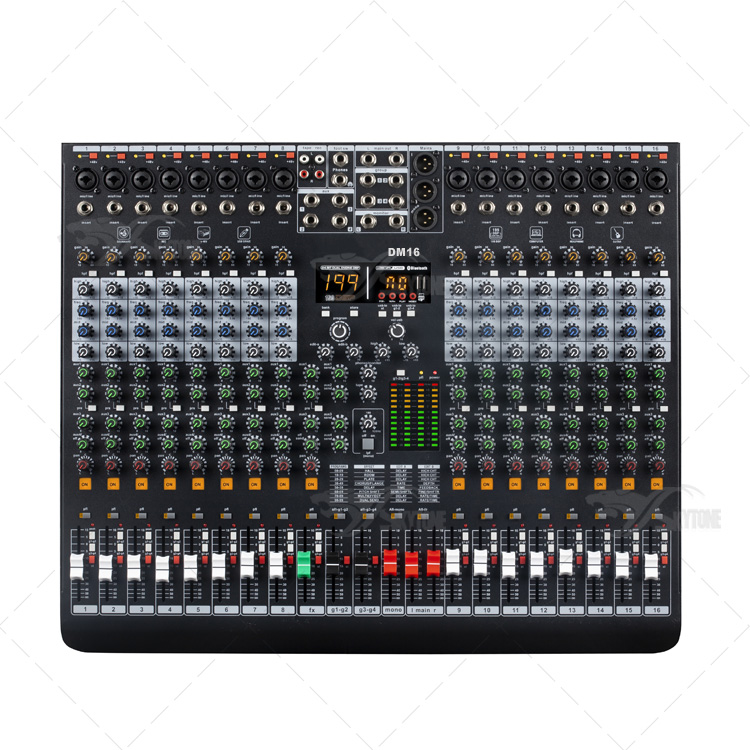

DM16 Functional features:

1. Professional Bluetooth style mixing console, equipped with ultra-low noise discrete microphone preamplifier and+48V phantom power supply, powerful and complete functions, and beautiful sound quality.

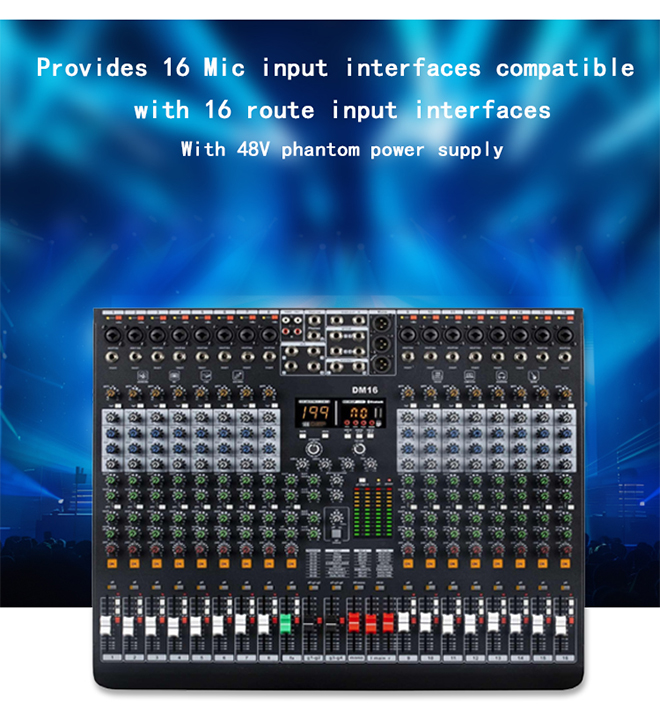

2. Provide 16 Mic input interfaces compatible with 16 line input interfaces, with a 48V phantom power supply.

3. Provide 16 channels of+48V phantom power supply and dual row level lights.

4. Each mono input channel is equipped with 4 EQ segments (stereo three segment), and the branching channels are equipped with pressure limit control and peak indicator lights.

5. Provide 4 sets of auxiliary outputs, 4 sets of outputs, 1 set of stereo monitoring output, 1 set of headphone monitoring output, and 1 set of ultra low frequency output.

6. Built in 199 bit DSP effector.

7. Bluetooth, MP3 player, large screen player, USB with sound card function, USB computer recording, USB disk recording direct recording

Technical parameters:

1. Microphone input: 16 channels (16 dual use XLR interfaces)

2. Line input: 16 single plug mono channels

3. Provide 2 rows of level lights

4. The branching channel is equipped with pressure limit control

5. Output: 4 sets of auxiliary outputs, 4 sets of outputs, 1 set of stereo monitoring output, 1 set of headphone monitoring output, and 1 set of ultra low frequency output

6. Effector: 199 bit DSP Effector

7. Phantom power supply: Each microphone input interface comes with a 48V phantom power supply

8. Frequency response: 20Hz-20kHz, ± 3dB

9. Distortion:<0.003% (A-weighted)

10. Microphone balanced input noise: -119dB (A-weighted)

11. Common mode rejection ratio: 60dB

12. Single channel input gain: MIC: 0 to 48dB, LINE: -33 to+15dB

13. Stereo channel input gain: LINE: -8 to+6dB

14. Main mix crosstalk: -87dBu (A-weighted)

15. Channel crosstalk: -85dBu (A-weighted)

16. Maximum output level:+20dBu

17. MIC input high pass filtering: 75Hz, 18dB/oct

18. Single channel equalization: High frequency: ± 15dB@12KHz ; Intermediate frequency: ± 12dB@2.5KHz ; Low frequency: ± 15dB@80Hz

19. Power supply: Built in switch power adapter 110-220V, 30W

20. Power consumption: ≤ 23W

21. Size (L x W x H): 575 * 475 * 80mm

22. Weight: 7.65kg
