Specifications:
| Carrier frequency band | 500-950MHz |

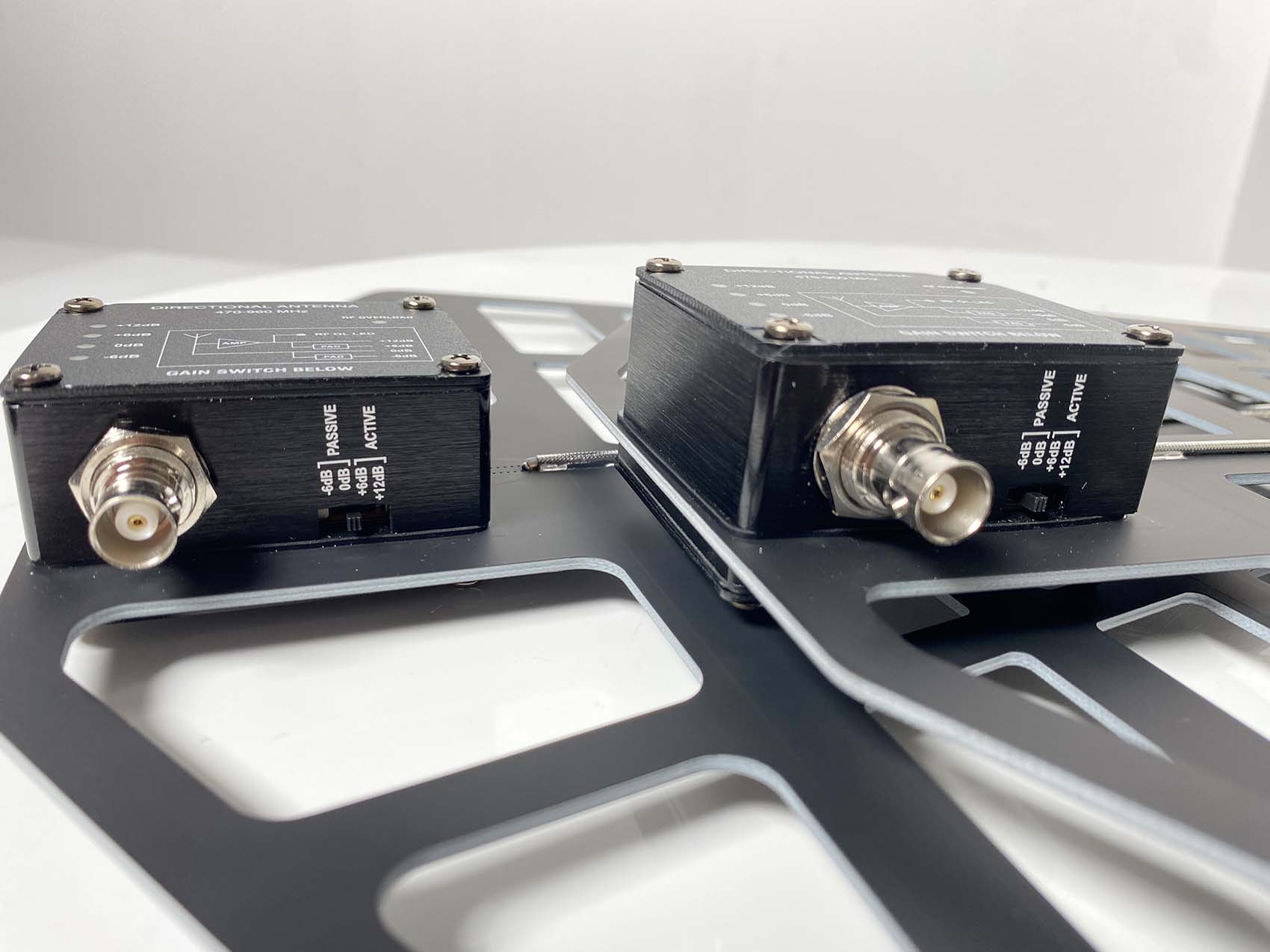

| Connector Type of the antenna input | BNC |
| Connector Type of the antenna output | SMA |
| Impedence | 50Ω |
| Maximum input signal | +13dB |
| Output external power supply | DC 12V 120mA |
Product Introduce:

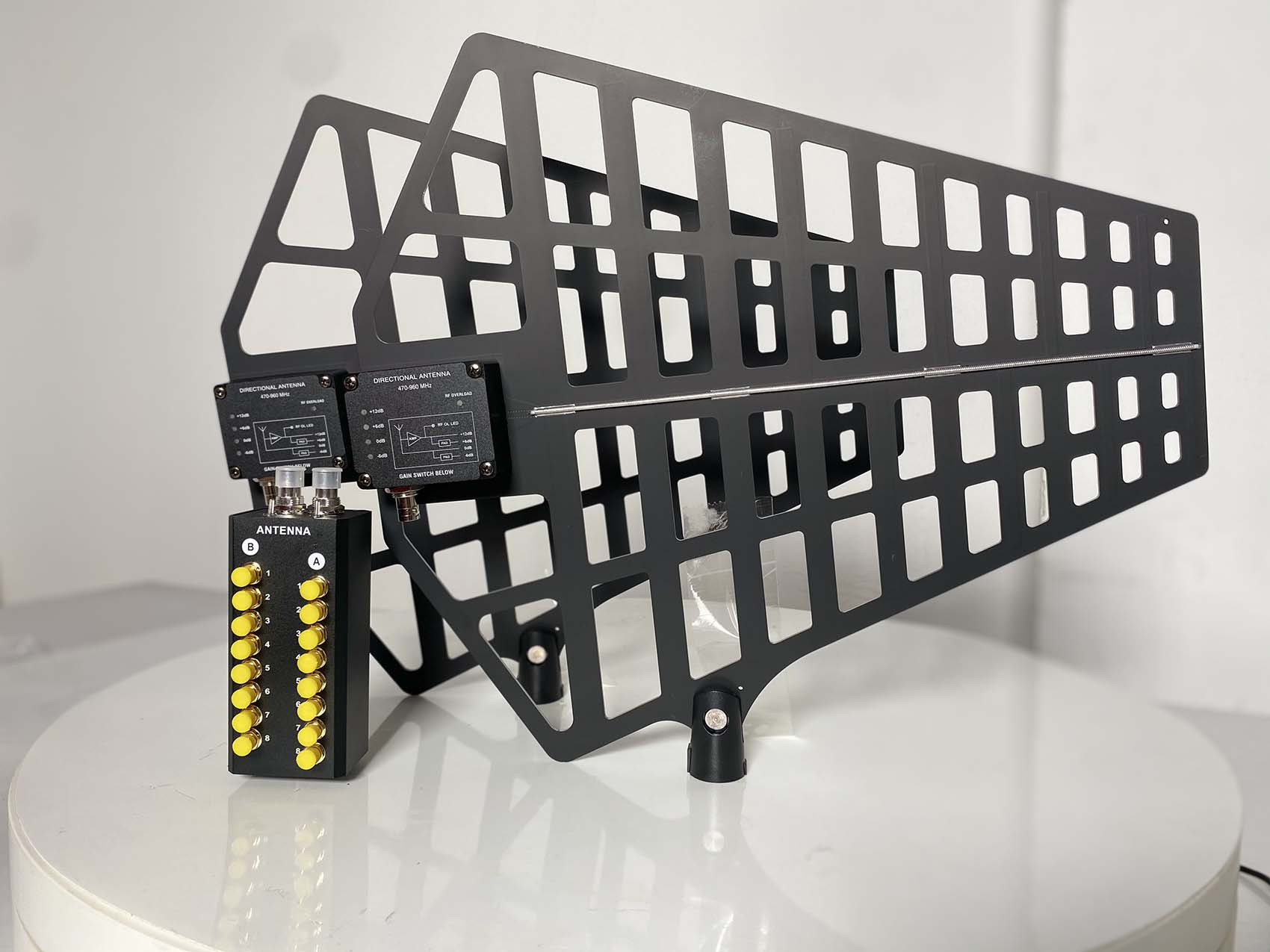

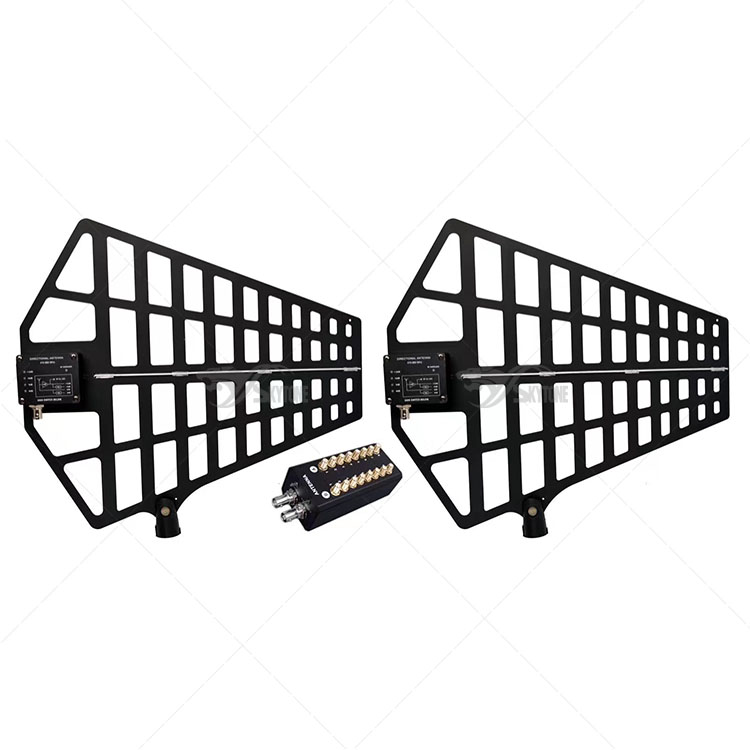

RF Multi SMA is the antenna distributor which is very convenient to operate.

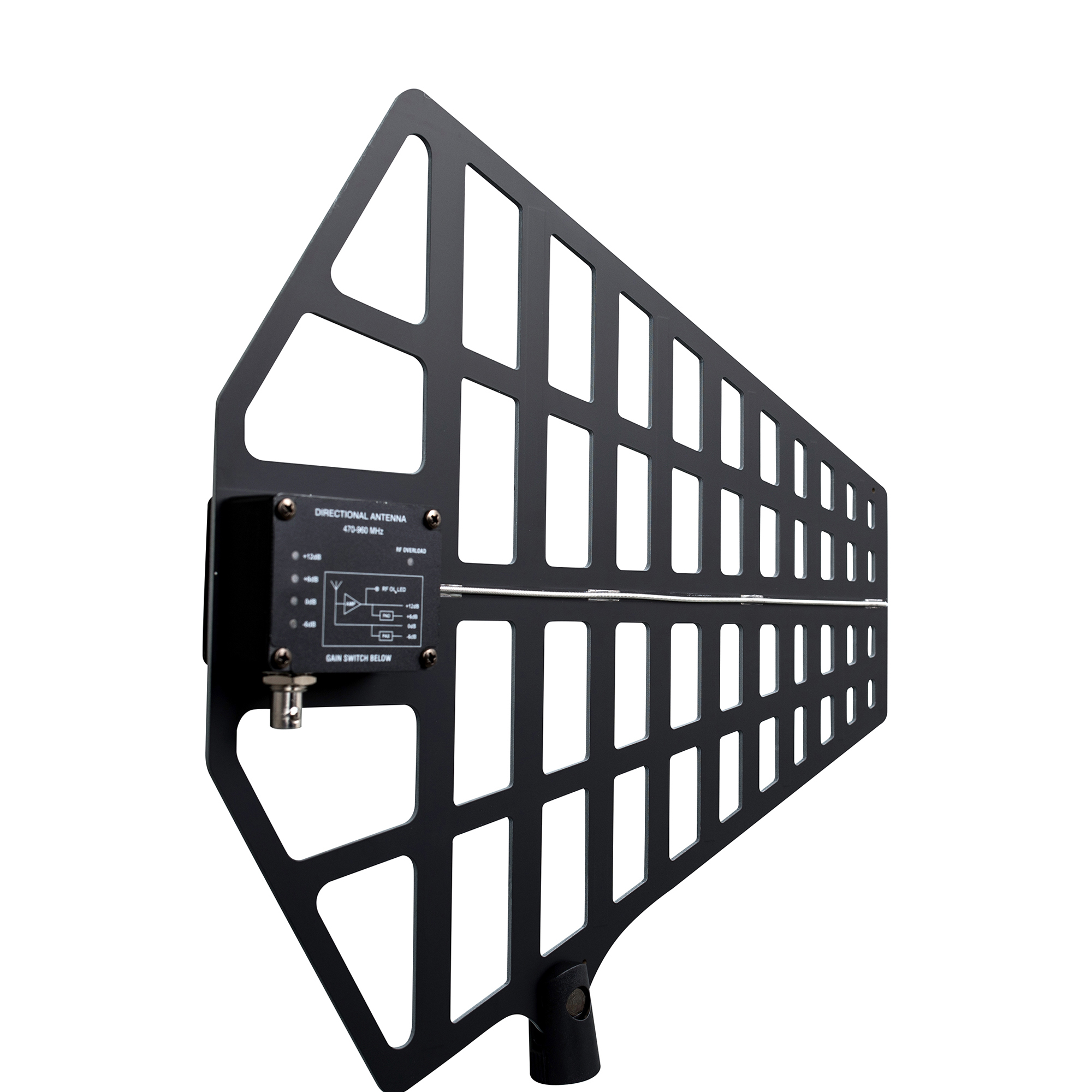

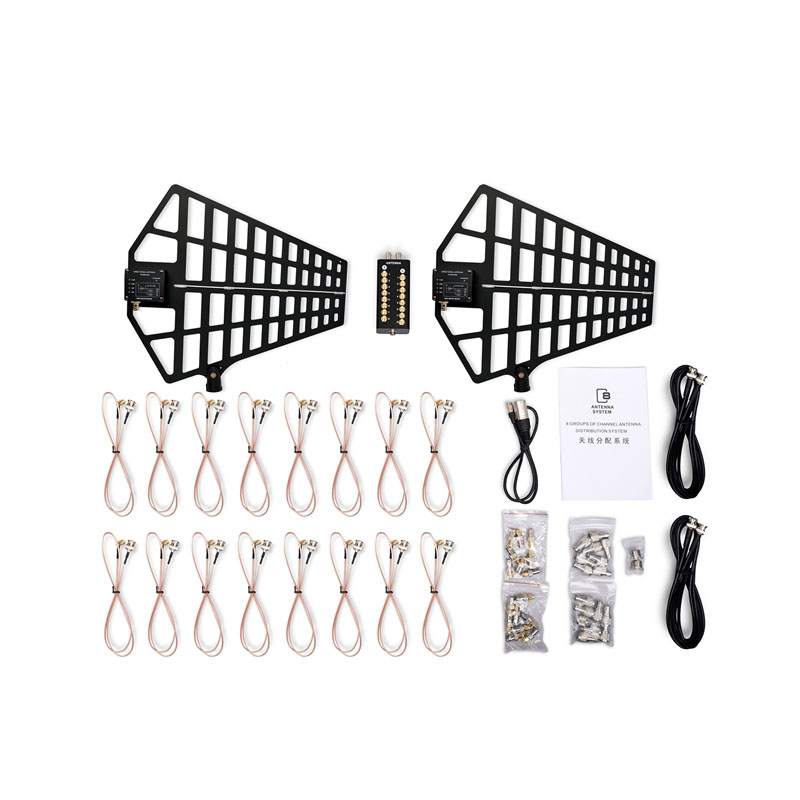

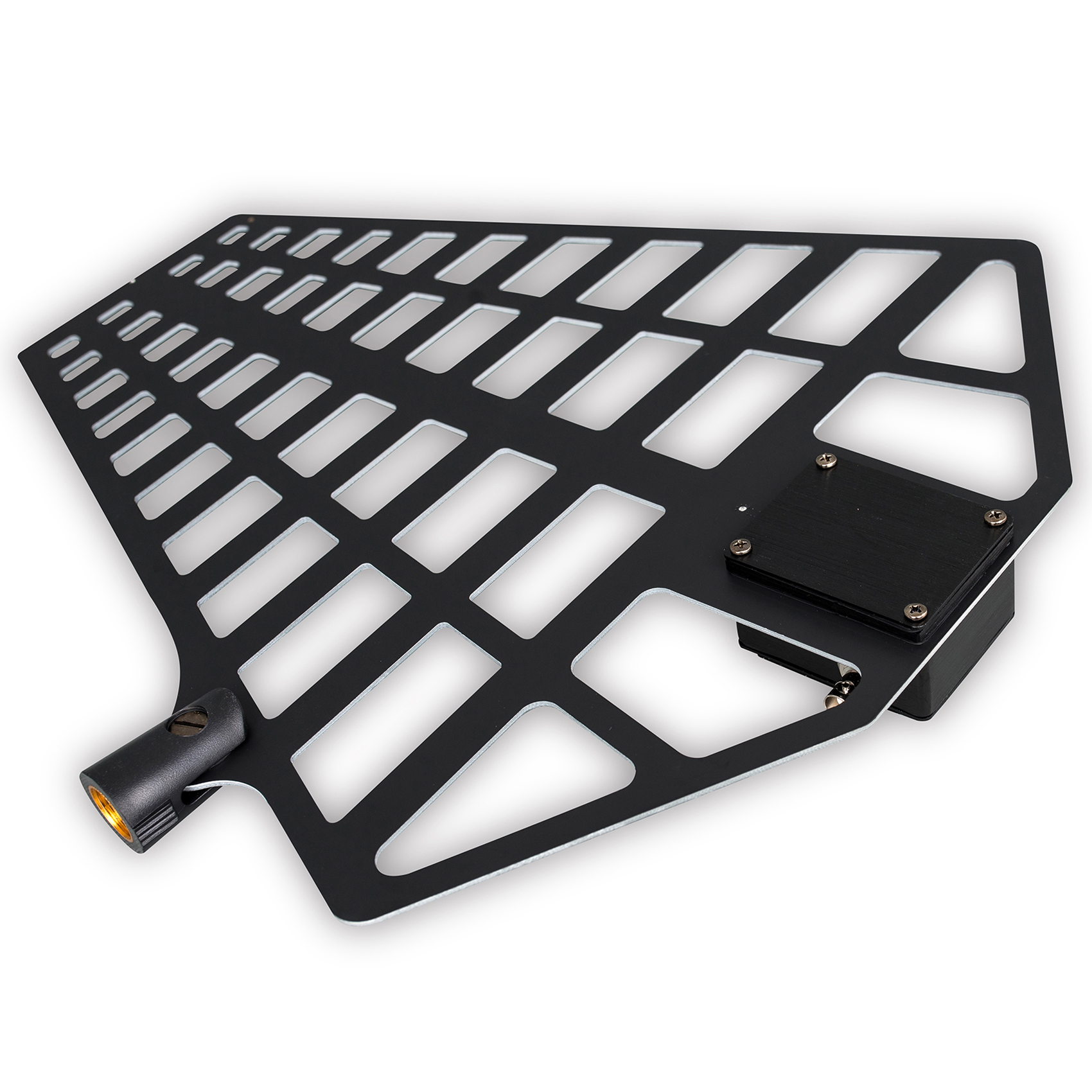

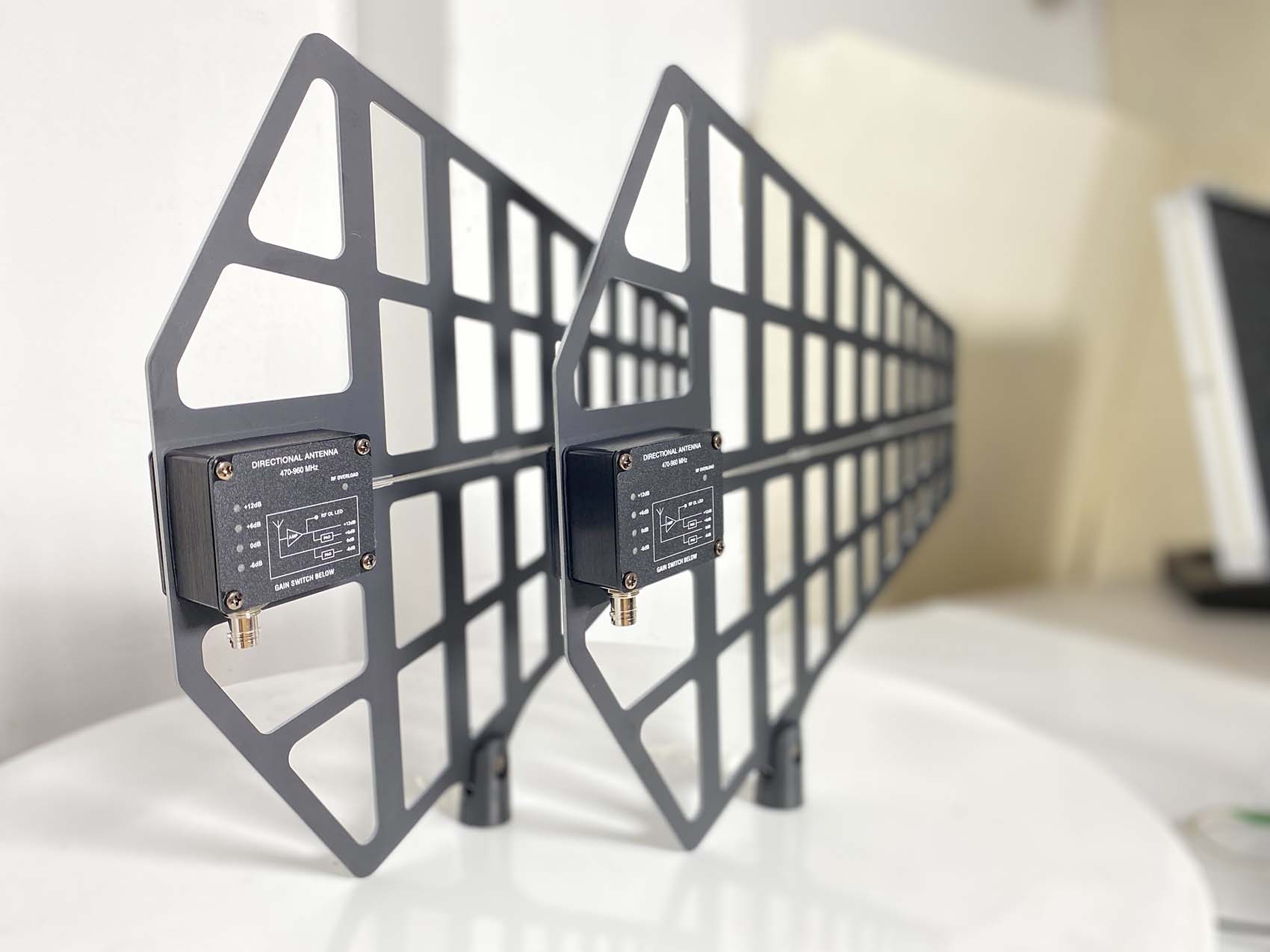

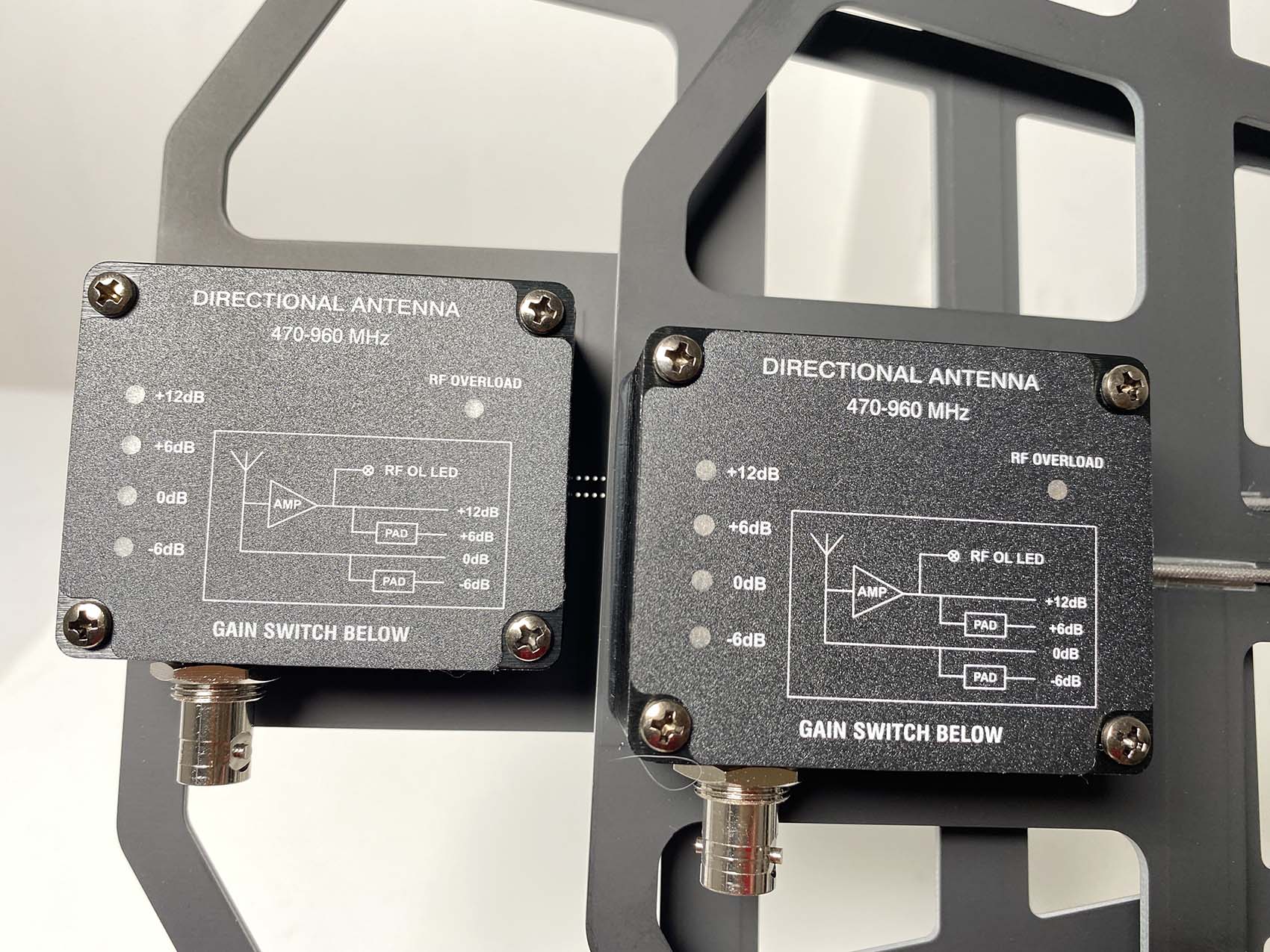

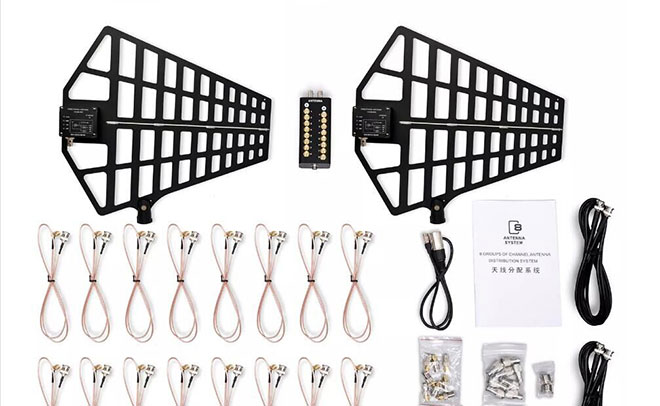

Two BNC input socket can connect two 500-950MHZ active antenna, and every BNC socket can distribute 8 SMA output socket to connect the antenan socket of the wireless receiver. So 2 BNC input socket can distribute total 16 SMA ouput socket, 2 groups 1x8 RF distributor.

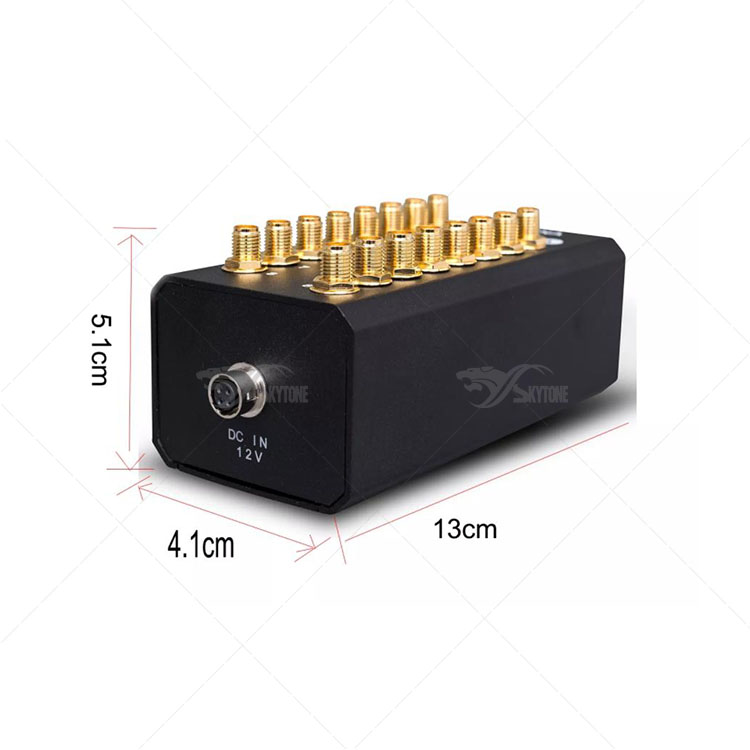

There are two power switch on the RF Multi SMA ,one is the power main switch of the distributor , the other is the power supply switch of the active antenna.In additional to this ,there is also a 4 Pin Hirose power socket of the RF Multi SMA,can use with the power supply which in 10V -15VDC range . (Notice : Be used with caution the 14.4V lithium battery cause the output voltage will be sli-ghtly high when starting up with the lithium battery ,it is possible to cause damage to the equipment.
