Advantaged features:
1: 20 signal inputs (12 MIC inputs, 2 stereo inputs, 1 return input, 1 digital input: sound card/MP3, fiber optic input)
2: Each input channel is equipped with a built-in voltage limiter, high and low pass, 4-stage parameter balancing, delay, and channel audiovisual balance adjustment
3: MIC input adopts digital gain adjustment
4: +48V phantom power supply (MIC channels can be independently turned on and off)
5: Built in 3 9-segment graphic equalizers (can be inserted into any 1-12 input channels)
6: Input output EQ ON/OFF
7: Stereo return input
8: Fast copy function of channel parameters
9: Each channel is equipped with a multifunctional menu, mute button, and monitoring button

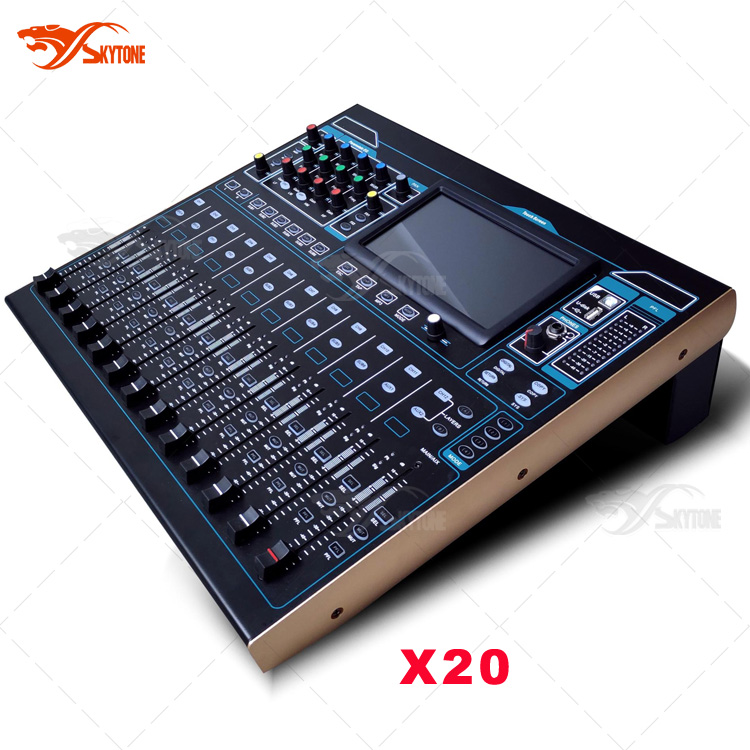

10: Each channel is equipped with 100MM electric push buttons and signal peak lights (13 electric push buttons)

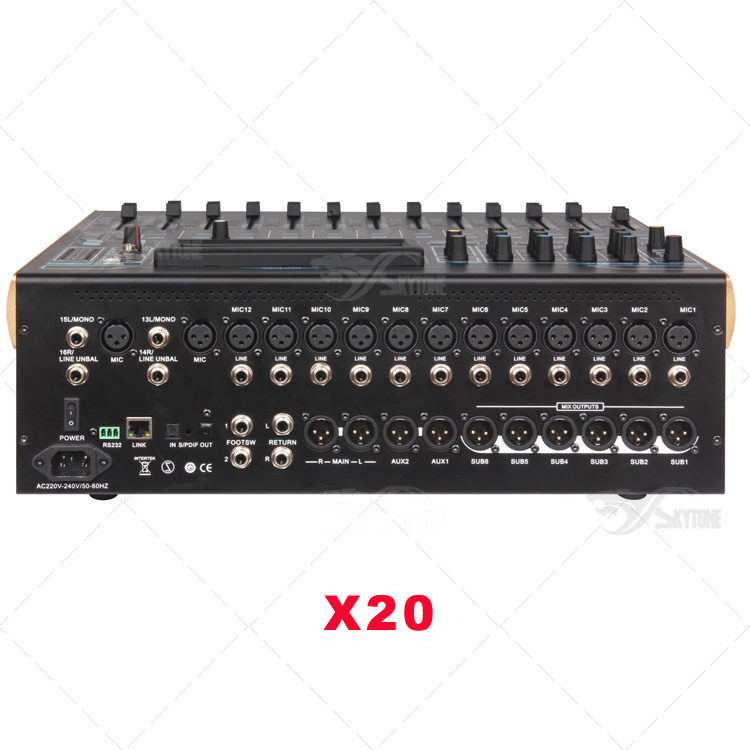

11: 10 signal outputs (stereo main output, 2 AUX outputs, 6 SUB outputs)
12: Each output channel processing: high and low pass filtering, 15 segment parameter equalization, compressor, delay, phase
13: AUX output (before and after the pusher)
14: Digital stereo recording function
15: Double row 3-color 12 segment level indicator lights
16: Built in sound card (MP3, Android, PC direct playback, recording)
17: 4 quick scene call modes, 20 scene storage
18: Storage and invocation of user parameters (can be managed on PC)
19: Built in two independent DSP effectors

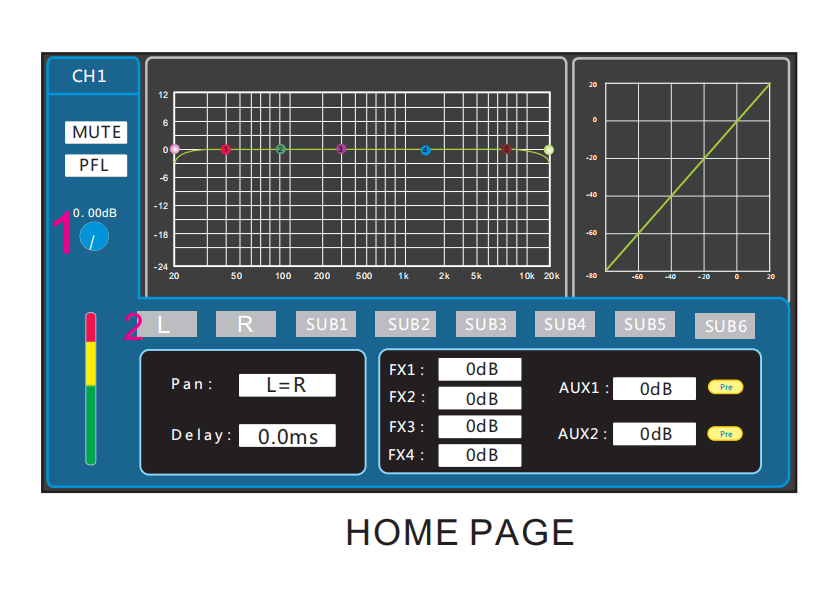

20: 7-inch 1024 * 600 high-definition touch color screen
21: FX pedal switch interface
22: Fiber optic input/output
23: Multi operating system control software (IOS system, Android system, Windows system) switches between Chinese and English display
24: Supports wired network port adjustment (or external router wireless adjustment)
25: Users can customize layers and output mixed editing functions
26: Parameter locking function
27: Two layer flipping, simplified operation, and more convenient to use
Specification:
Input microphone/line input 1-12 balanced, XLR jack
Input sensitivity (XLR/TRS): -60 to+10dB/-50 to+20dB
Electronic gain: -32 to+10dB, 0.7 steps
Maximum input level (XLR/TRS):+19dB/+29dB
Input impedance (XLR/TRS):>5k Ω/>10k Ω
THD+N uniform gain state 0dB: 0.0005% -89dB (20-20KHZ, direct output @ 0dB 1KHZ)
THD+N medium gain+30dB: 0.001-75dB (20-20KHZ, direct output @ 0dB 1KHZ)
Output voltage: 4V MAX
Earphone output: 7V 220 ohms

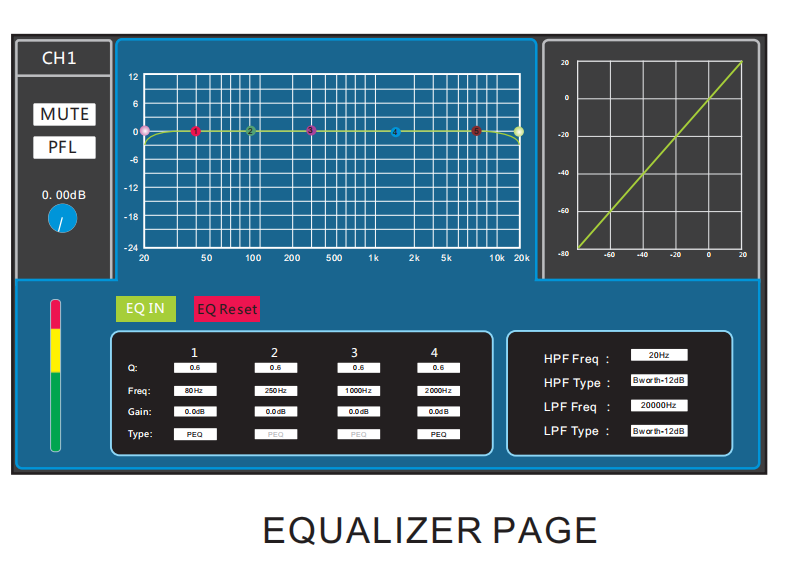

4-stage full parameter equalization for input: 20-20kHz,+/-12Db, Q value 0.3-15.0
Frequency band 1: optional Lshelf, PEQ
Frequency band 2: PEQ
Band 3: PEQ
Frequency band 4: optional Hshelf, PEQ
Input independent delay: maximum 10ms
Output 15 segments of full parameter equalization: 20-20kHz,+/-12Db, Q value 0.3-15.0
Output independent delay: maximum 30ms

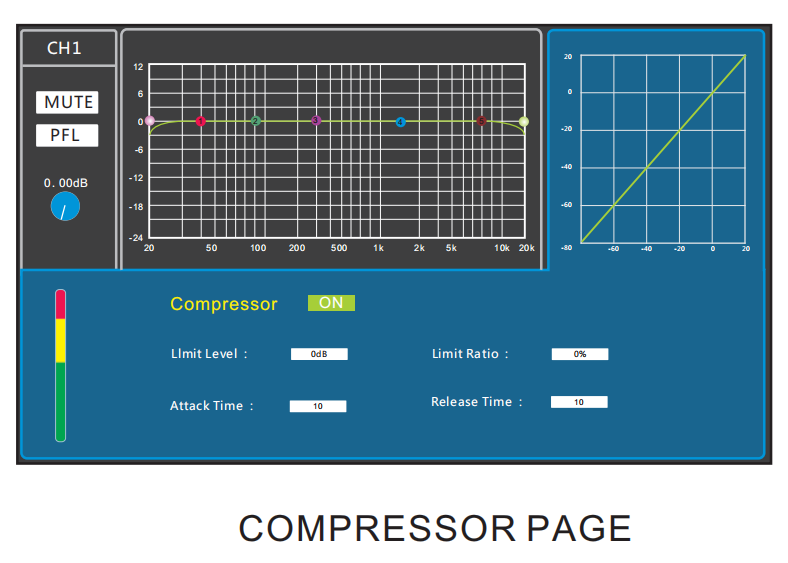

Compressor:
Switch: ON/OFF
Threshold value/ratio -50dBu to 6dBu/1:1 to infinity
Impact/Release 1ms-127ms/1ms-127ms
Can be inserted into 9-segment graphic equalization
63, 125, 250, 500, 1k, 2k, 4k, 8k, 16k
Gain:+/-12dB
Control:
Pusher: 100mm electric

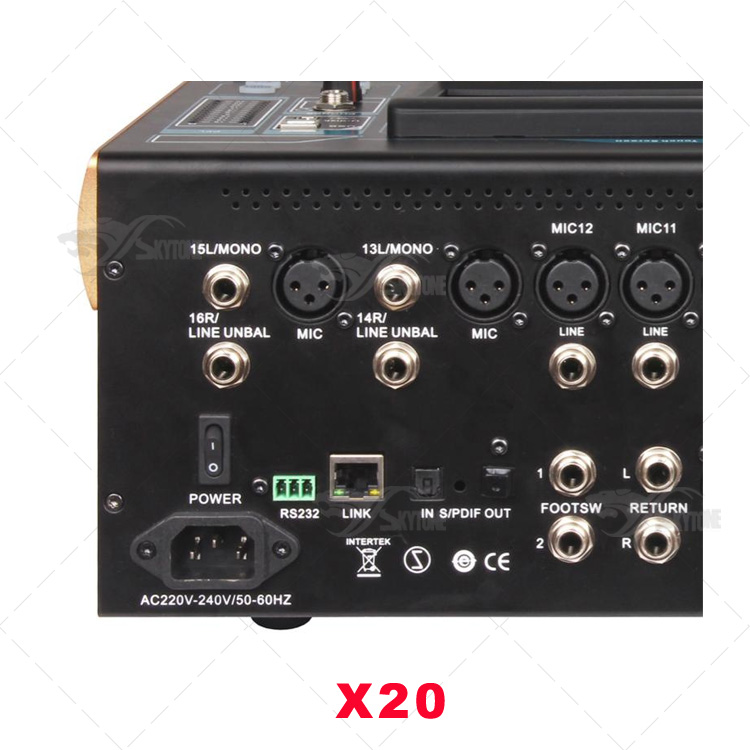

Network: The Fast Ethernet (100 Mb/s) port can be connected to a computer using a CAT5 cable for controlling mixer parameters through TCP/IP, or connected to a wireless router (access point) for on-site mixing control using the V16 application on the iPad. The Link indicator light flashes to show network activity.
